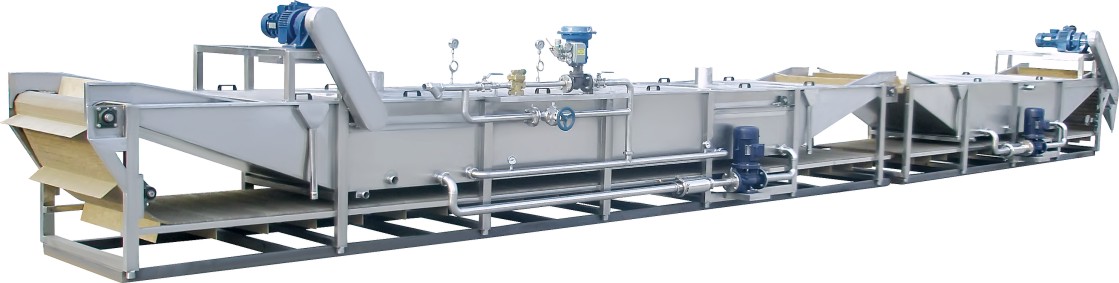

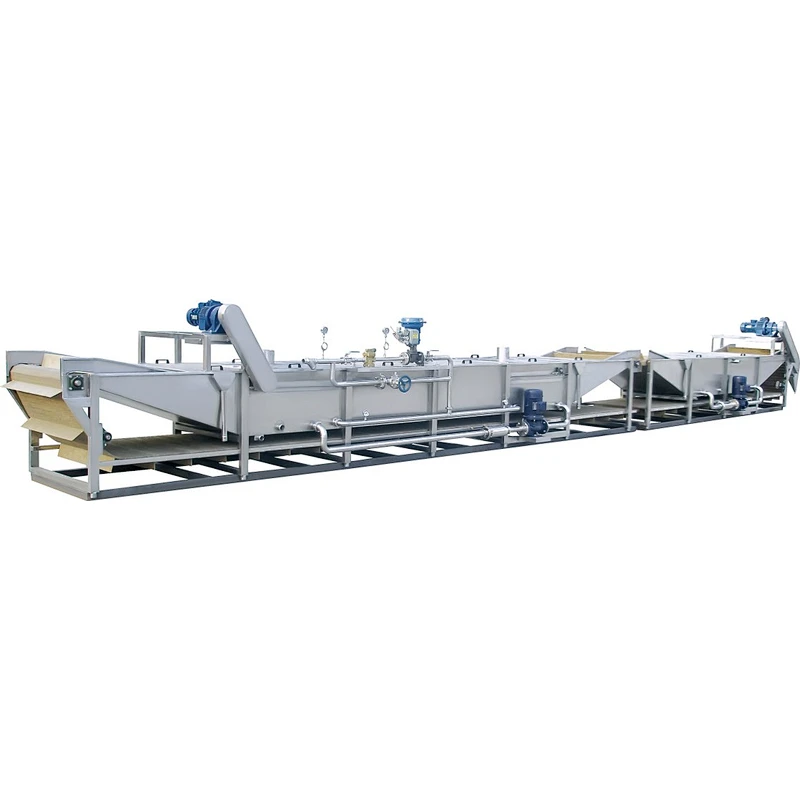

Water bath scraper sterilization machine
Water bath scraper sterilization machine

Water bath scraper sterilization machine

Model NO.
TK-SYGBSJJ
Quantity:
Product performance characteristics
◆This machine is mainly used for sterilization of finished products such as PE/PPT plastic bags and tinplate cans.
◆The main frame is made of SUS304 material. The main components are composed of conveying scraper, machine body, piping system, electric control system, etc. The main shaft is rotated by the chain to transport the material to the designated position. The speed can be controlled by frequency conversion and the sterilization time can be adjusted arbitrarily.

Main specifications and technical parameters
Production capacity1-5T/H
Sterilizing temperature98℃ it can be subject to order
Sterilizing time10-35minute speed infinitive adjusting
Cooling temperature20℃
Cooling time10-20minute speed infinitive adjusting
Steam pressure0.4MPa
Chain speed0.17-10minute speed infinitive adjusting
Centrifugal blower fan3kw
Complete weightAbout 6000kg
Dimension1600*2600*2000mm
