Description of Passion Fruit Processing Line
1. Passion/dragon fruit can be processed into frozen or aseptic concentrated puree, single strength puree, clarified juice, nectar, syrup and jam.2. The passion/dragon fruit processing line includes washing and sorting system,peeling and pulping system, enzymatic hydrolysis and filtration system (optional), concentrating system (optional) , pasteurizing and sterilizing system, aseptic filling system.
3. The capacity of the processing line ranges from 10 tons per day to 480 tons per day with the raw material input.
Features of Passion Fruit Processing Line
* Advanced technology and energy saving. * SUS304/316L material,high qualified component of international brand.* Semi-automatic as well as fully automatic system available.
* Customized turn-key solution including installation, commissioning at your side.
* The finished product quality is excellent, and the color is attractive.
* High productivity, flexible production, can be customized according to customer demand.
* Complete supervision system, equipped with control room to monitor each processing stage.
* Daily output can be clearly record.
Product Specification
| Raw material | Fresh Passion fruit, Dragon fruit, Papaya |
| End product | Fruit pulp, clear juice, cloudy juice, juice concentrate |
| Processing capacity | From 10 tons/day to 500 tons/day |
| Brix of juice | 10~20% Brix |
| Brix of concentrate | 36~65% Brix |
| Package options | Ring-pull can/ Tetra pak / Oral liquid bottle/ PET bottle |
| Output | Can be calculated |

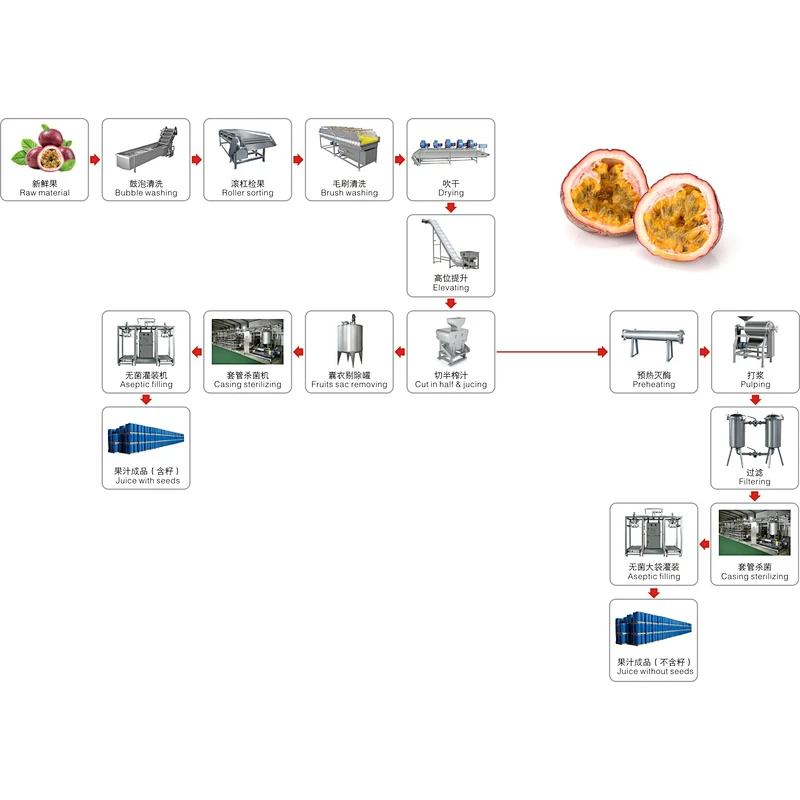

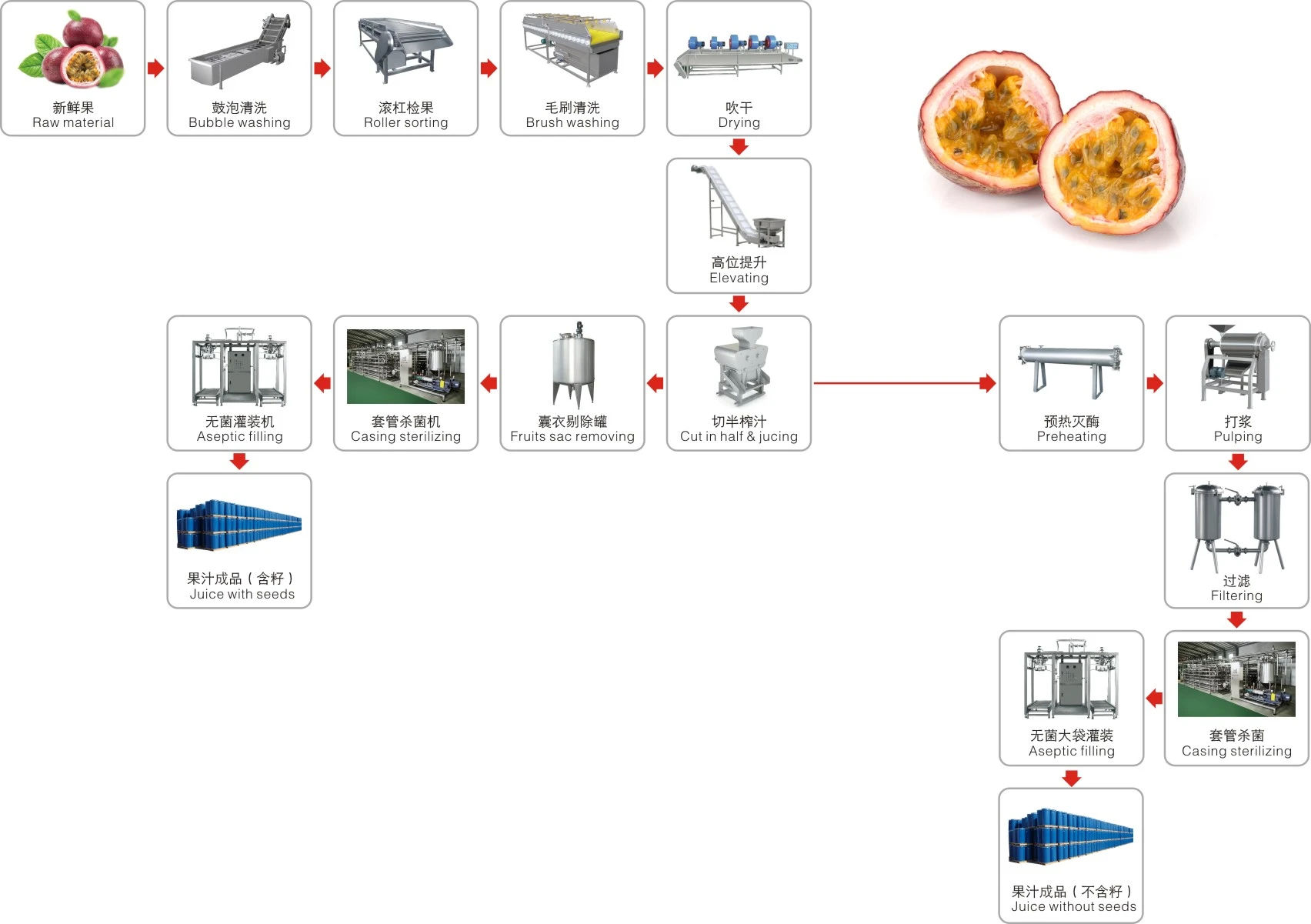

1.Raw material--Bubble washing--Roller sorting--Brush washing--Drying--Elevating--Cut in half&jucing--Fruits sac removing--Casing sterilizing--Aseptic filling--Juice with seeds.
2.Raw material--Bubble washing--Roller sorting--Brush washing--Drying--Elevating--Cut in half&jucing--Preheating--Pulping--Filtering--Casing sterilizing--Aseptic filling--Juice without seeds.
