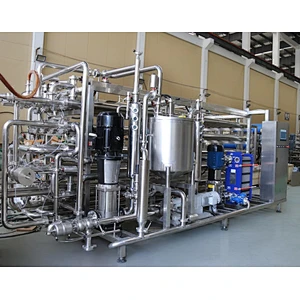

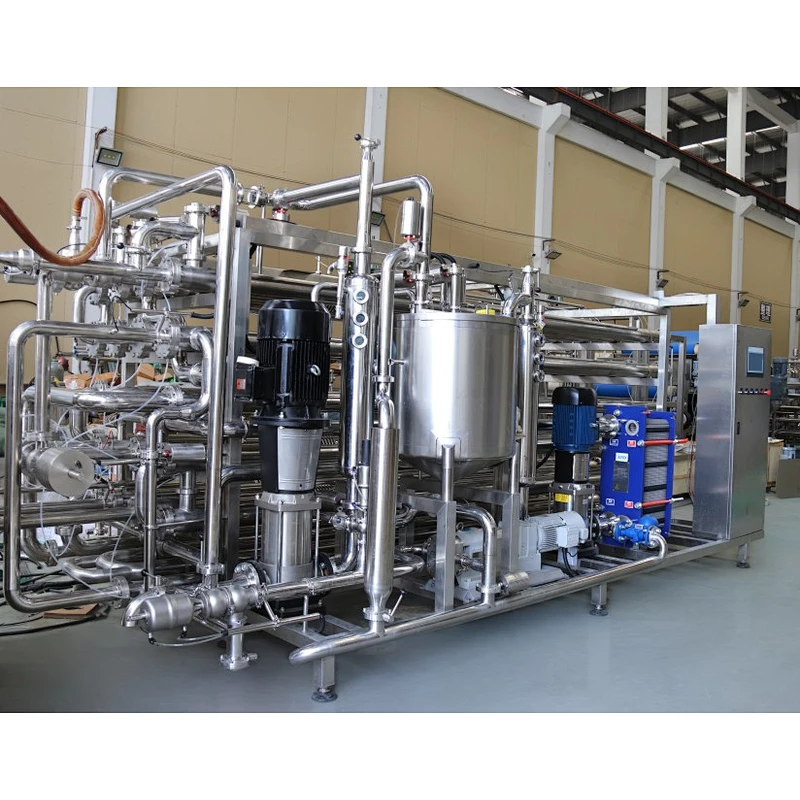

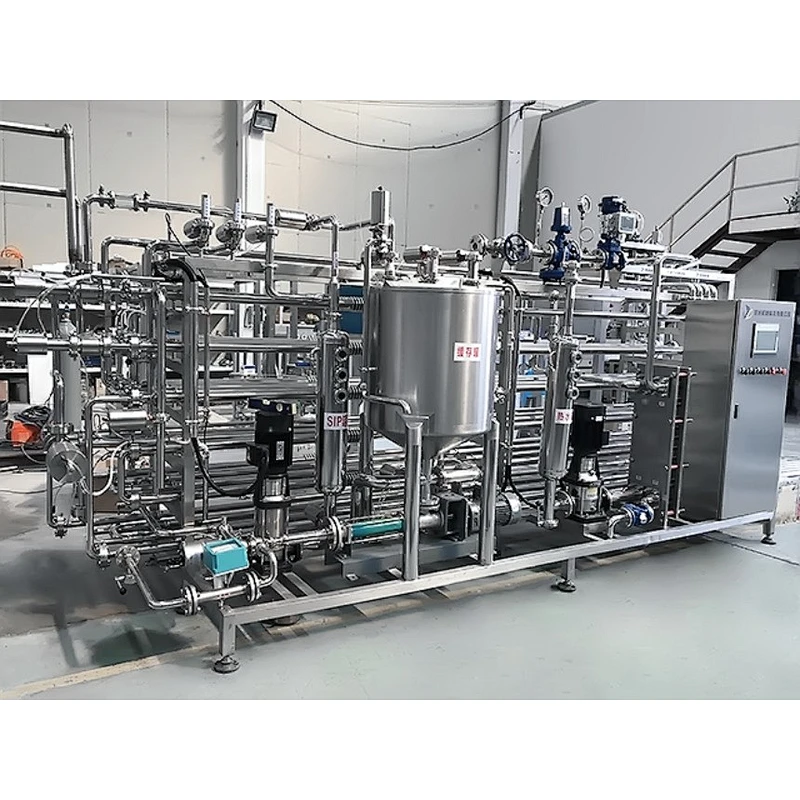

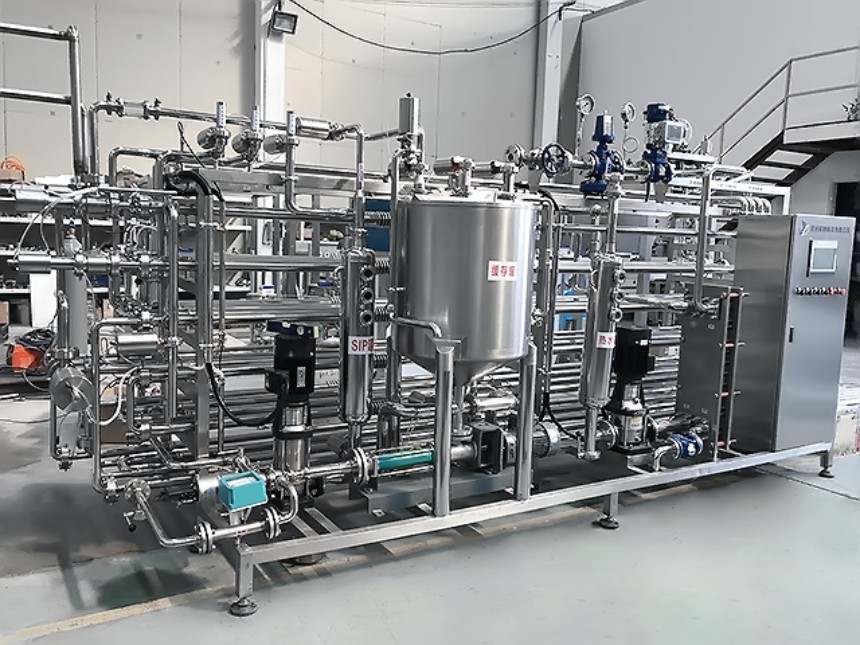

Tube sterilizer

Model NO.: TK-LG

Quantity:

Product Description

Product performance characteristics
◆It can be used for continuous sterilization of juice, tea beverage, milk beverage or similar products, and can be connected to homogenizer, degassing machine and other equipment;
◆The whole machine is made of high quality SUS304 or 316L stainless steel material, which meets the requirements of food hygiene;
◆The whole sterilization process PLC is fully automatic control, the operation is simple and convenient, the sterilization parameters are set, the one-button operation is completed, the sterilization process is automatically completed, and no human intervention is required;
◆The heating medium and the material have small temperature difference, high heat exchange efficiency, up to 90% heat recovery rate, and 25% energy saving compared with similar equipment;
◆Self-contained CIP/SIP system, the pipeline is sterilized at a high temperature of 125 ° C before production.
◆The sterilization temperature control is accurate and reliable, and the steam pressure, flow rate, material flow rate, etc. are strictly controlled automatically;
◆The inner wall of the material pipe is polished by advanced technology and automatically welded, and the pipe design is completely cleaned automatically;
◆The material pipeline of this equipment adopts flange connection in the temperature-maintaining and cooling section, and has steam shielding function to ensure the material is safe and sterile.
◆The equipment is self-contained with pipe shell to prevent scaling of the heat exchange tube and prevent cracking of the sterilizer pipe.
◆The system accessories are all made of high performance and high reliability products. Steam, hot water, materials, etc. all have pressure protection measures and alarm systems;
◆The main components such as material pumps, heat pumps, various valves, electrical components and actuators of the control system are all world-renowned brands.

Main specifications and technical parameters

Model	TK-LG-0.5	TK-LG-1	TK-LG-3	TK-LG-5	TK-LG-10
Capacity	500L/H	1000L/H	3000L/H	5000L/H	10000L/H
Sterilizing time	2-120S or customized
Sterilization temperature	95-138	95-138	95-138	95-138	95-138
Inlet temperature	25-45℃	25-45℃	25-45℃	25-45℃	25-45℃
Outlet temperature	25-40℃	25-40℃	25-40℃	25-40℃	25-40℃
Compressed air pressure	≥0.7MPa	≥0.7MPa	≥0.7MPa	≥0.7MPa	≥0.7MPa
Compressed air consumption	10m³/h	10m³/h	10m³/h	10m³/h	10m³/h
Steam pressure	≥0.7MPa	≥0.7MPa	≥0.7MPa	≥0.7MPa	≥0.7MPa
Steam consumption	~100KG/H	~200KG/H	~600KG/H	~1000KG/H	~2000KG/H
Power	7KW	11KW	18KW	25KW	35KW
Dimension(LWH)(MM)	480017001700	500021001800	650022501900	650025002000	700028002300
