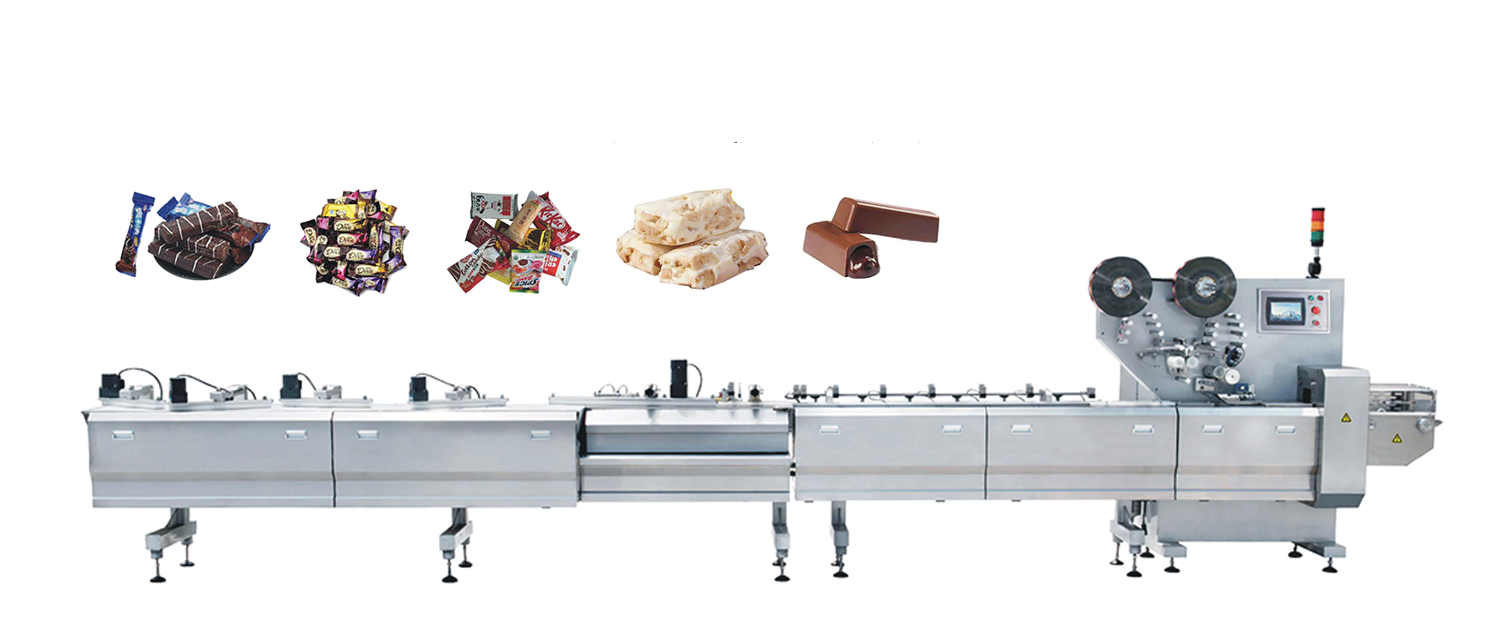

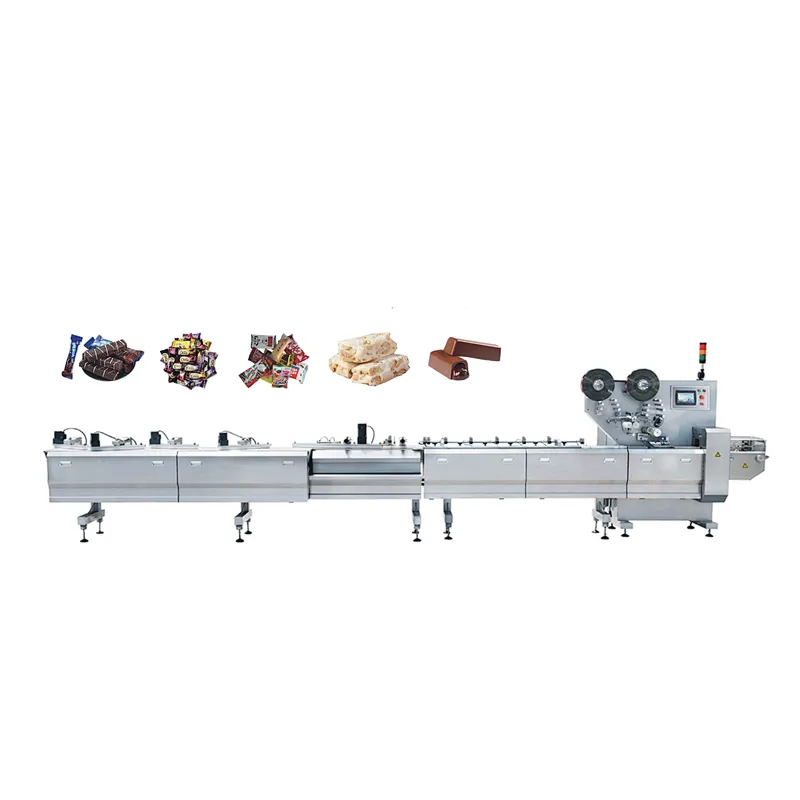

Application of TK-Z1221 High Speed Full Automatic Pillow Packing Machine
This machine is used for packing the product that are not suitable the brush to feed, like chocolate, waffle, puffing, nougat etc. It can work together with the production line by customized feeding conveyor to ensure auto production ,feeding and packing.
Feature of TK-Z1221 High Speed Full Automatic Pillow Packing Machine
1.It uses the best high-level technology .It has fully-automated touch-screen computer controller, with servo-technology system, quickly and easily to adjust the packaging of different sizes.
2.Its touch panel can be operated easily, multi-zone temperature control station can ensure the quality of excellent packaging. The sealing looks more strong and beautiful.
3.It has humanized efficient software with automatic packing film replacement function can save film and time.
4.It can work together with the production line by one feeding conveyor to ensure auto production, arrangement , feeding, sealing without any interval. Greatly reducing labor costs to improve production efficiency.
5.Automatic product compensation device ensures its 100% no-empty package.
6.It has automatically warning alarm system ,all waning will display on PLC ,easy to operation and maintenance.
7.Easy to clean the belt and change the hot/cold sealing by yourself.
8.We can customize its left machine according to customer’s demand.
9.It is equipped water cooling system.
10.Multilingual operation interface can meet the customer’s deamdn from different country.
Main Technical Parameters of TK-Z1221 High Speed Full Automatic Pillow Packing Machine
Packing speed:100-1000pcs/min
Folded bag size:5-185mm
Raw material size:
Length：30-135 mm
Width：15-60 mm
Thickness：5-30mm
Packing film: OPP. CPP. PET. VMPET , Aluminum film and single layer or multi layer hog-seal or cold-seal film
Other specification of TK-Z1221 High Speed Full Automatic Pillow Packing Machine
Voltage：380V
Total power ：9.6KW
Net weight：2080KG
Dimension：7025*1360*1885mm
