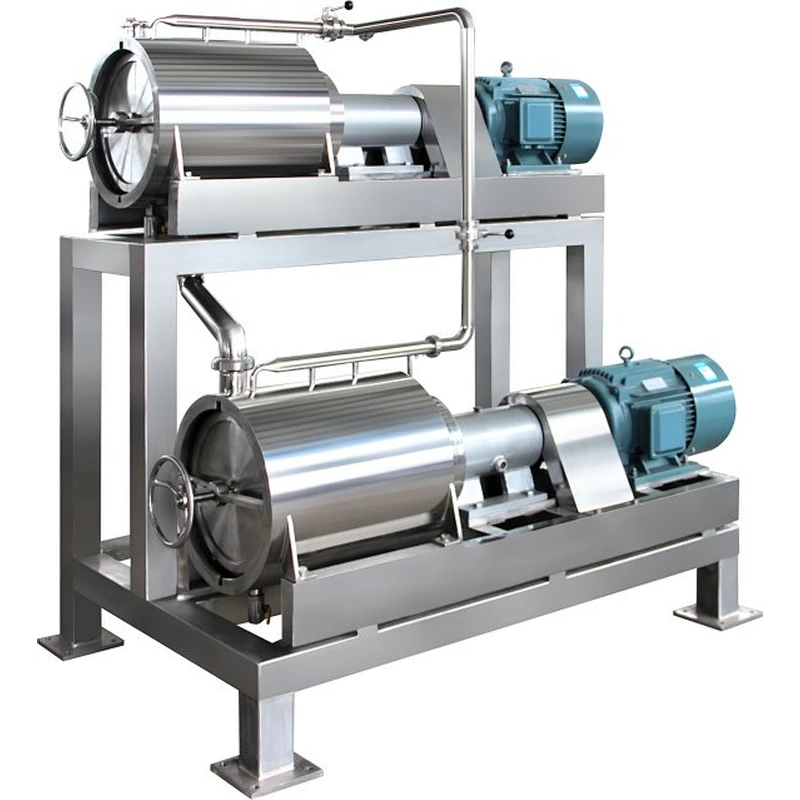

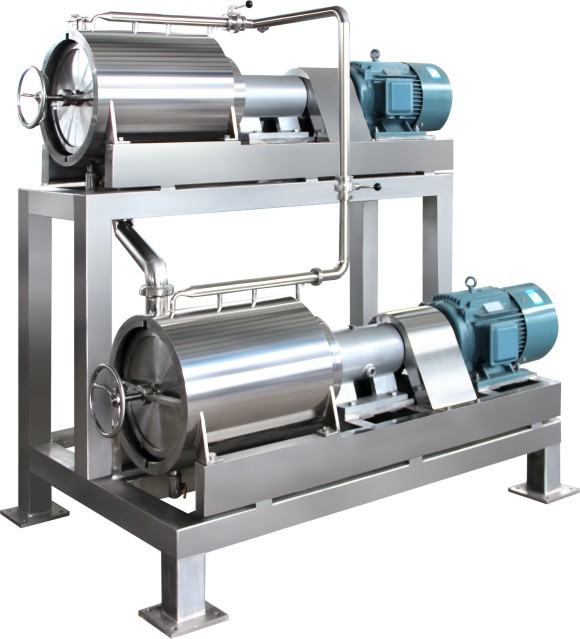

Pulping & refining machine

Model NO.: TK-DJJZ

Quantity:

Product Description

Product performance characteristics
◆It is mainly used for peeling, seeding, beating and refining of fruits and vegetables such as tomatoes, strawberries, hawthorn, red dates, alfalfa and sea buckthorn to achieve the purpose of separation of pulp.
◆Incorporating Italian technology, unique tapered screen structure, high pulping rate;
◆The part in contact with the material is made of high quality stainless steel and meets food hygiene standards;
◆Automatic cleaning interface, built-in multi-angle shower head, cleaning automation process;
◆High-precision dynamic balance detection, more balanced operation and lower noise;
◆The internal screen aperture is customized according to different materials, and is divided into single and double-station stations to meet the needs of different fruits and vegetables and different processing capacity.

Main specifications and technical parameters

Model	TK-DJJZ-2	TK-DJJZ-5	TK-DJJZ-10	TK-DJJZ-15	TK-DJJZ-20
Production capacity （t/hr）	1-2	3-7	8-10	10-15	15-20
Power(kw)	6	15	22	30	37
Blade rotation speed(r/min)	1440	1440	1440	1440	1400
Screen aperture(mm)	0.6-0.8-1.1	0.6-0.8-1.1	0.6-0.8-1.1	0.6-0.8-1.1	0.6-0.8-1.1
Dimension(MM)	165011001680	185013001680	200015001850	220018002100	250020002250
