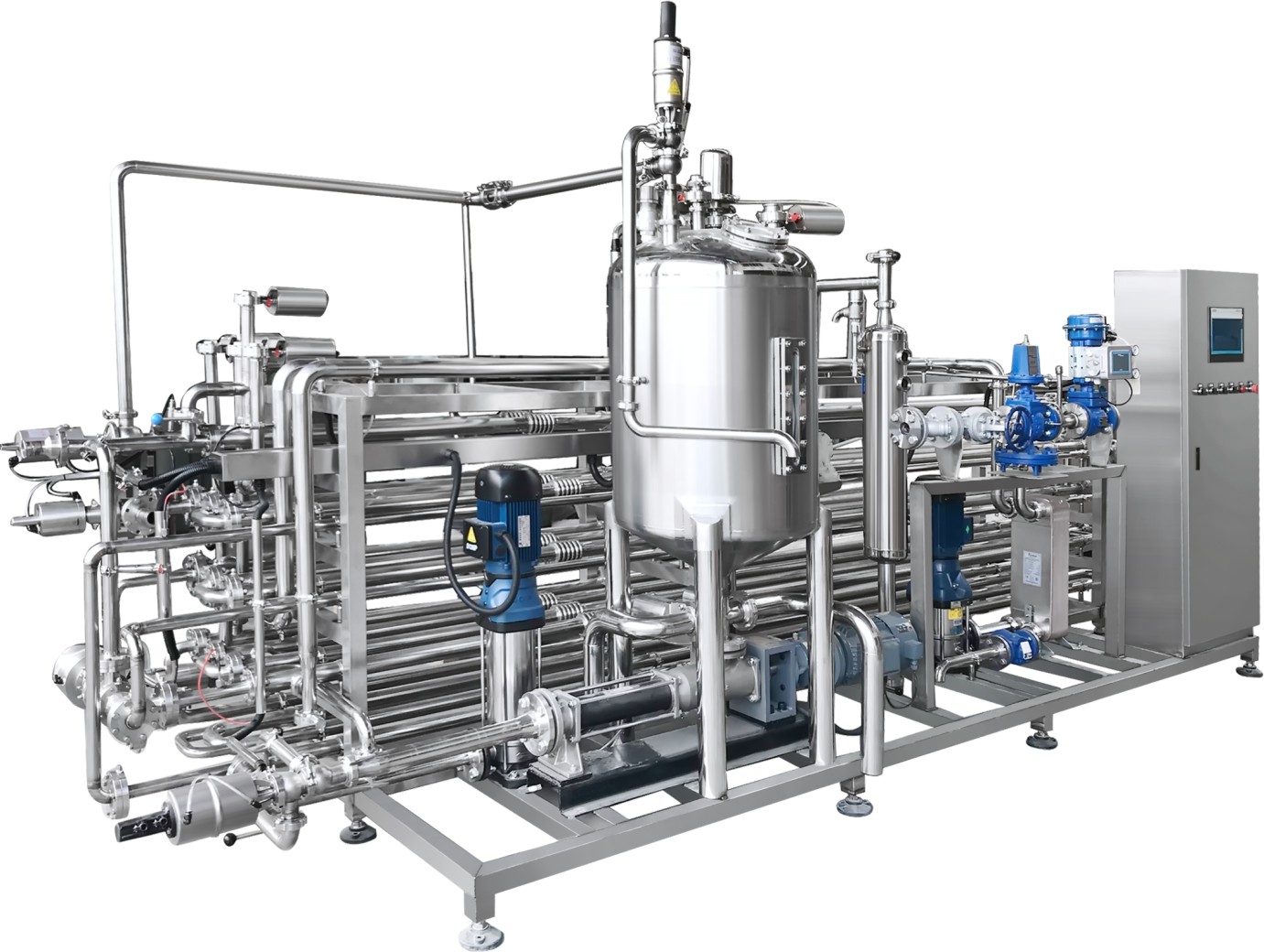

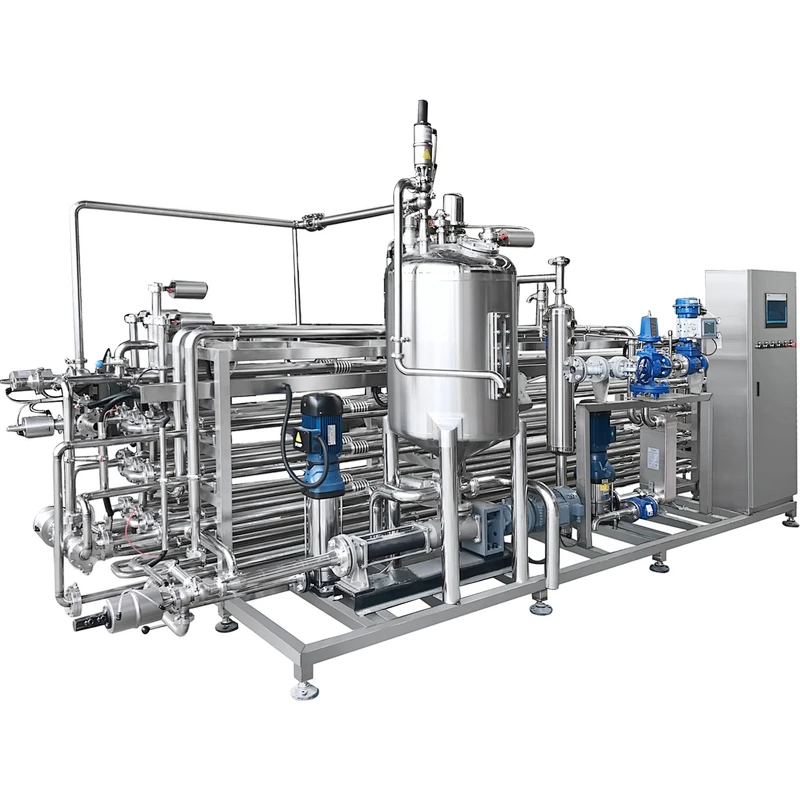

Preheating cooler
Preheating cooler

Preheating cooler

Model NO.
TK-GS
Quantity:
Product performance characteristics
◆This machine is mainly used for heating and cooling of fruit and vegetable juice or fruit and vegetable pulp. It is mainly used to passivate the components which are easily oxidized by air, such as polyphenol oxidase in fruit and vegetable juice and fruit and vegetable pulp, to protect the color and protect the taste;
◆Tube or casing structure, using superheated water circulation heating, PLC touch screen automatic control, with CIP cleaning function;
◆According to the processing technology of different fruits and vegetables, the preheating temperature and the cooling temperature are flexible and adjustable;
◆The whole machine is made of 304 stainless steel material, which meets food hygiene standards;
◆Steam valve sets, pumps, valves, etc. use advanced brands at home and abroad;
◆The control system uses imported brands such as Siemens and Schneider.

Main specifications and technical parameters
ModelTK-GS-1TK-GS-3TK-GS-5TK-GS-10
Production capacity L/H10003000500010000
Material inlet temperature 25℃-40℃25℃-40℃25℃-40℃25℃-40℃
Warm keeping time Design according to customer needs
Sterilizetemperature50-98℃50-98℃50-98℃50-98℃
Material outlet temperature35℃-45℃35℃-45℃35℃-45℃35℃-45℃
Steam pressure≥0.7MPa≥0.7MPa≥0.7MPa≥0.7MPa
Steam consumption~150kg/h~450kg/h~750kg/h~1500kg/h
Compressed air pressure≥0.6MPa≥0.6MPa≥0.6MPa≥0.6MPa
Compressed air consumption10m³/h10m³/h10m³/h10m³/h
Dimension(MM)4500*1500*18005500*1700*20006000*1800*22006500*2000*2500
