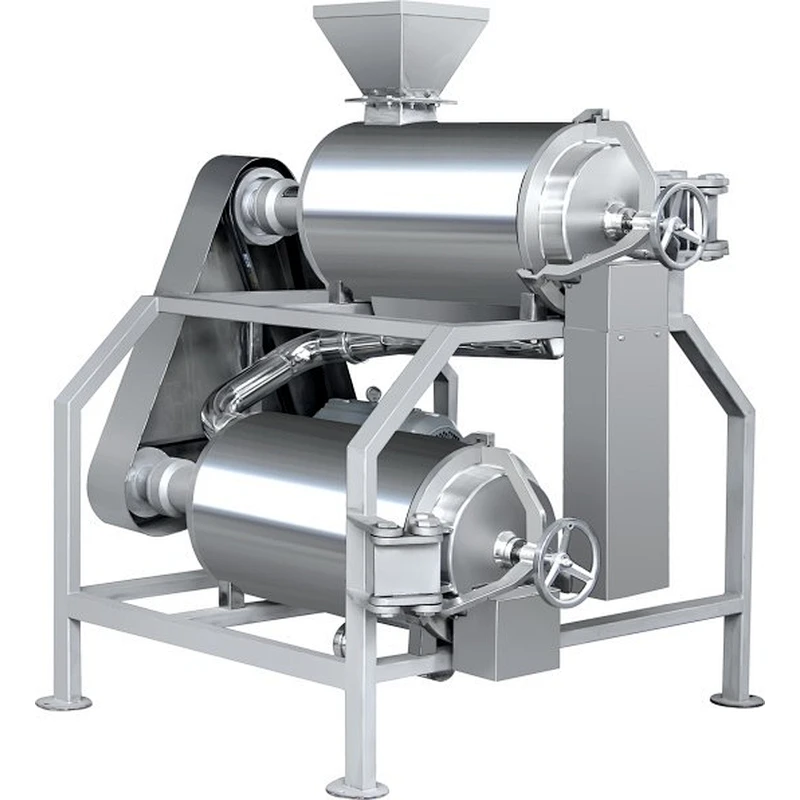

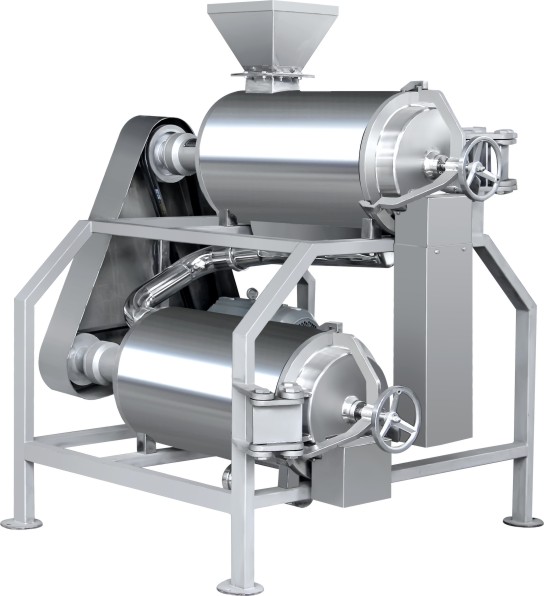

Pitting and pulping machine
Pitting and pulping machine

Pitting and pulping machine

Model NO.
TK-DJ
Quantity:
Product performance characteristics
◆This machine is used for beating, peeling and enucleation of fruits and vegetables. It is mainly suitable for denucleating pulping after pre-cooking or eight mature stone fruits. The pulp, slag and core are automatically separated, and the core is peeled and peeled. Separation of the pulp. It is suitable for the processing of stone fruit fruits such as mango, apricot, peach and plum.
◆Automatic cleaning interface, built-in multi-angle sprinkler, high degree of cleaning automation;
◆The overall frame and the contact part with the material are made of high quality 304 stainless steel material;
◆The movable door of the nuclear outlet is designed with a unique hinge mechanism, and the cleaning and replacement of the screen is extremely convenient;
◆The equipment is stable in operation and can be installed on the assembly line for automated production;

Main specifications and technical parameters
ModelDescriptionDimension(MM)
(L*W*H)		Suggested capacitySuggested  power(KW)
The capacity and power are determined ondifferentraw fruits
TK-DJ-2Material SUS304 stainless steel1170*1000*1250≤2t/h5.5
TK-DJ-5Rotating speed 960-1350 RPM1760*1200*15003-5t/h15
TK-DJ-10All made of SUS304 stainless steel1950*1400*16806-10t/h22
TK-DJ-15Rotatingat 960-1350 RPM2150*1650*188011-15t/h30
