Description of Citrus Fruit Processing Line
1. Citrus fruits include orange, lemon, grapefruit, tangerine, etc. So we designed the special extractor for citrus to improve its juice yield and flavor. Citrus fruits are usually processed to natural juice, NFC juice, concentrate clear juice, citrus sauce, etc.2. Citrus processing line is combined of grading system, storage system, washing and sorting system, oil extracting and separating system，juice extracting and pulping system,enzymatic and filtration system, evaporating system, pasteurizing/sterilizing system, aseptic filling system.
3. Except the liquid product of citrus, we can also design the citrus peel and seeds deep processing to improve the production efficient for factory.
4. Citrus juice can be filled into pet bottle, glass bottle, doy-pack, tetra pack, aseptic bag in box, etc.
Features of Citrus Fruit Processing Line
* Advanced technology, energy & water saving.* SUS304/316L material, high qualified component of international brand.
* Semi-automatic and fully automatic system for your choice.
* Customized turn-key solution including installation, commissioning at your side.
* The finished product quality is excellent, beautiful color and tasty.
* High productivity, flexible production, can be customized according to customer demand.
* Complete supervision system, equipped with control room to monitor each processing stage.
* Daily output can be clearly record.
Product Specification
| Raw material | Citrus, Fresh orange, lemon, etc |
| Finished product | Concentrated Juice, NFC Fresh Nature Juice, Oil, Orange pulp |
| Processing capacity | From 20tons/day to 2000 tons/day |
| Efficient input | 45 ~ 50% raw fruit (50% as waste, peels and seeds) |
| Fruit consistence | 7~12% Brix |
| End package | Aseptic bag/ Tin can/ Glass bottle/ PET bottle, customize |
| Output | Can be calculated |

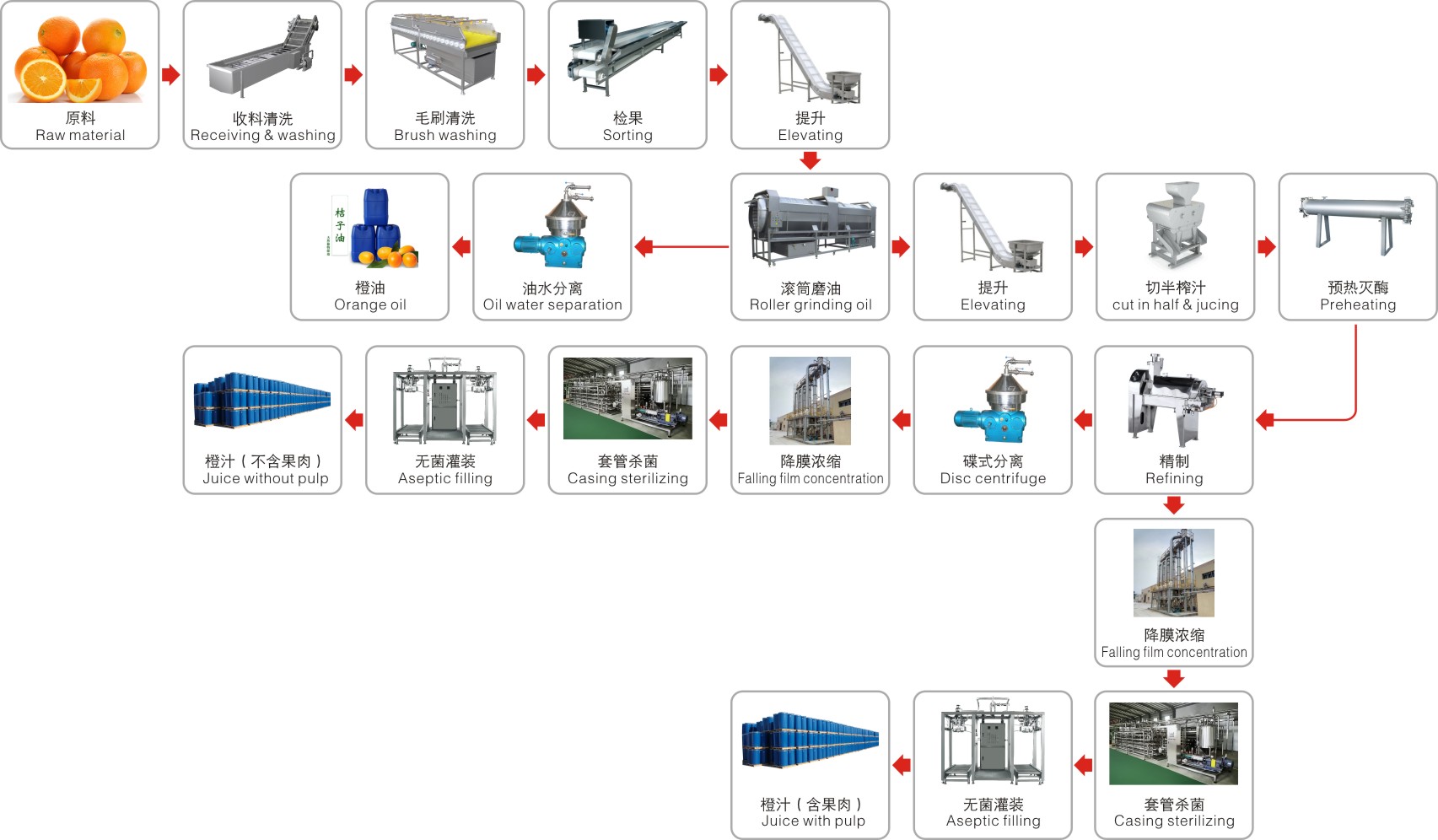

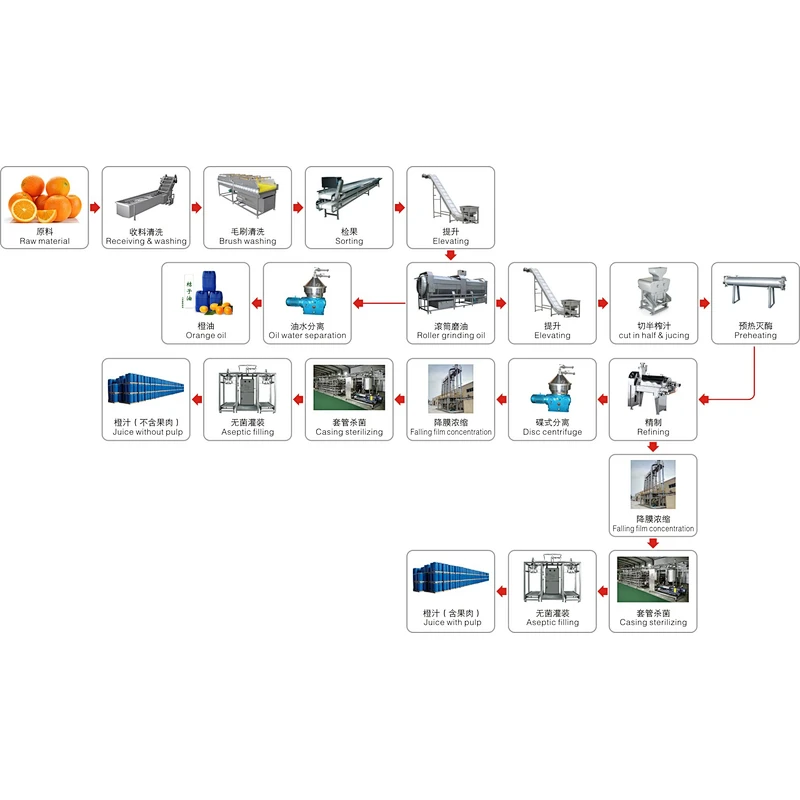

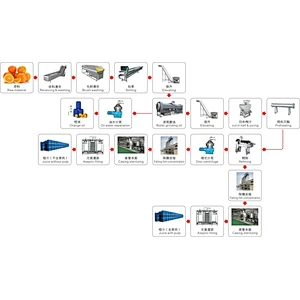

Product Flowchart
1.Raw material--Receiving&washing--Brush washing--Sorting--Elevating--Roller grinding oil--Oil water separation--Orange oil.
2.Raw material--Receiving&washing--Brush washing--Sorting--Elevating--Roller grinding oil--Elevating--cut in half&juicing--Preheating--Refining--Disc centrifuge--Falling film concentration--Casing sterilizing--Aseptic filling--Juice with pulp(Juice without pulp).
