Description of Grape Processing Line
1. The fresh grape can proceed into Concentrated grape pulp, NFC grape juice, Grape clear concentrate juice and red wine through fermentation according to clients different requirements. 2. Grape juice processing line includes fresh grape washing and sorting system, grape destemmer and crusher system, grape juice extracting system, enzymatic hydrolysis and filtration system, evaporating system,sterilizing system, aseptic filling system, auxiliary energy system,etc.3. The grape processing line capacity is about 20 tons to 2000 tons per day, the fina products can be filled into bottles, metal cans, carton boxes, pouches or bulk containers.
4. Grape juice yield: about 50% (50% for the peels and seeds for the waste).
5. Raw material solid content: 16~20% Birx, Final concentrate juice concentration is about 65~72% Brix.
Features of Grape Processing Line
* Advanced technology, energy & water saving.* SUS304/316L material, high qualified component of world famous brand.
* Semi-automatic and fully automatic system for your choice.
* Customized turn-key solution including installation, commissioning at your side.
* The finished product quality is excellent, beautiful color and tasty.
* High productivity, flexible production, can be customized according to customer demand.
* Complete supervision system, equipped with control room to monitor each processing stage.
* Daily output can be clearly record.
Product Specification
| Raw material | Fresh grape |
| End product | Natural juice, puree, clear concentrate juice, paste, Raisin, Red wine |
| Processing capacity | 60 to 500 tons/day |
| Juice yield | About 50% |
| Brix of carrot | 16~20% Brix |
| Brix of concentrate | 65~72% Brix |
| Package options | Aseptic bag/ Metal can/ Glass bottle/ PET bottle/ Tetra pack/ Doypack |
| Designed capacity | According to clients' requirements |

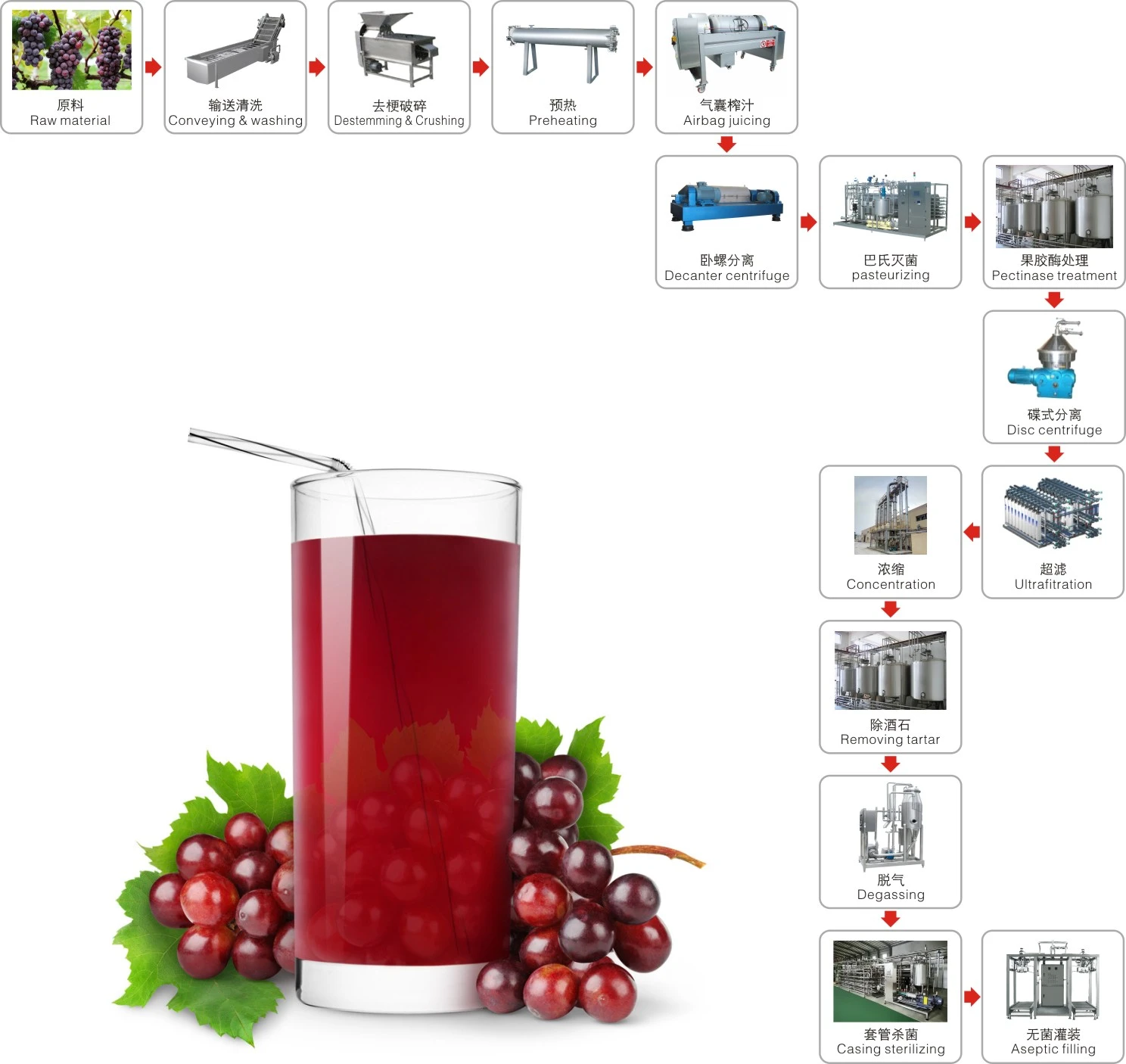

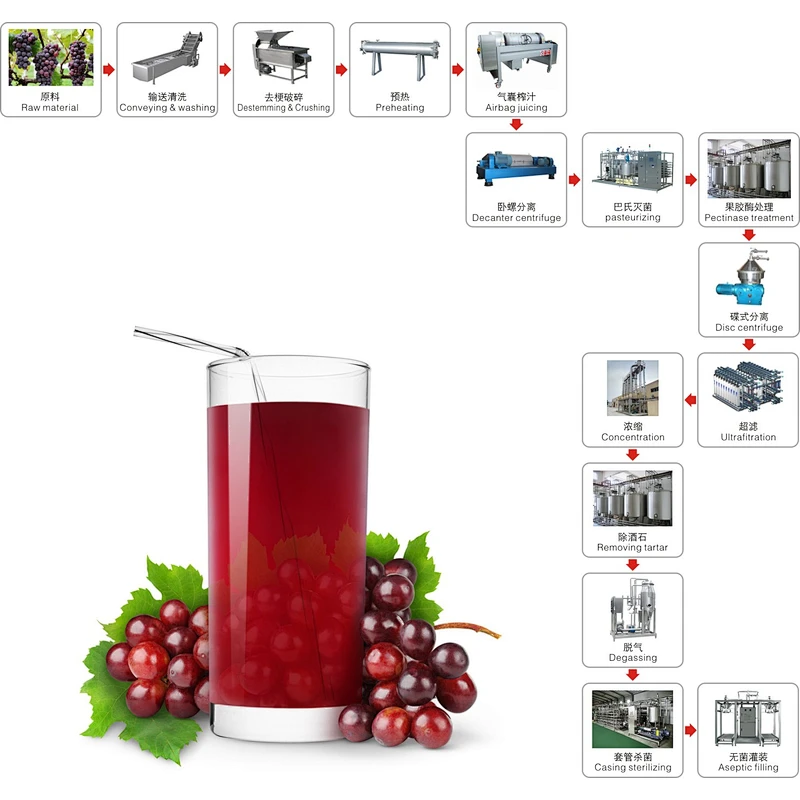

Raw material--Conveying&washing--Destemming&Crushing--Preheating--Airbag juicing--Decanter centrifuge--pasteurizing--Pectinase treatment--Disc centrifuge--Ultrafitration--Concentration--Removing tartar--Degassing--Casing sterilizing--Aseptic filling.
