Description of Fig Processing Line
1. Fresh fig usually can be processed to pulp, puree, NFC juice, clear concentrate juice, paste, sauce,etc.2. The fig processing composed of washing and sorting system, crushing and pulping system, standardization system, enzymatic hydrolysis and filtration system, evaporating system, sterilizing system and aseptic filling system, auxiliary energy system.
3. Fig processing line capacity is from 60 tons/day-480tons/day.
4. Fig pulp yield: about 85% (15% for fruit peels and seeds for the waste).
5. Raw material solid content: 18.2% Brix, Concentrated pulp 28~30% Brix.
Features of Fig Processing Line
* Advanced technology, energy & water saving.* SUS304/316L material, high qualified component of world famous brand.
* Semi-automatic and fully automatic system for your choice.
* Customized turn-key solution including installation, commissioning at your side.
* The finished product quality is excellent, beautiful color and tasty.
* High productivity, flexible production, can be customized according to customer demand.
* Complete supervision system, equipped with control room to monitor each processing stage.
* Daily output can be clearly record.
Product Specification
| Raw material | Fresh fig |
| End product | Fig pulp, puree, clear concentrate juice, paste, Dried fig |
| Processing capacity | 60 to 1500 tons/day |
| Brix of carrot | 18.2% Brix |
| Brix of concentrate | 28~30% Brix |
| Package options | Aseptic bag/ Metal can/ Glass bottle/ PET bottle/ Tetra pack/ Doypack |
| Designed capacity | According to clients' requirements |

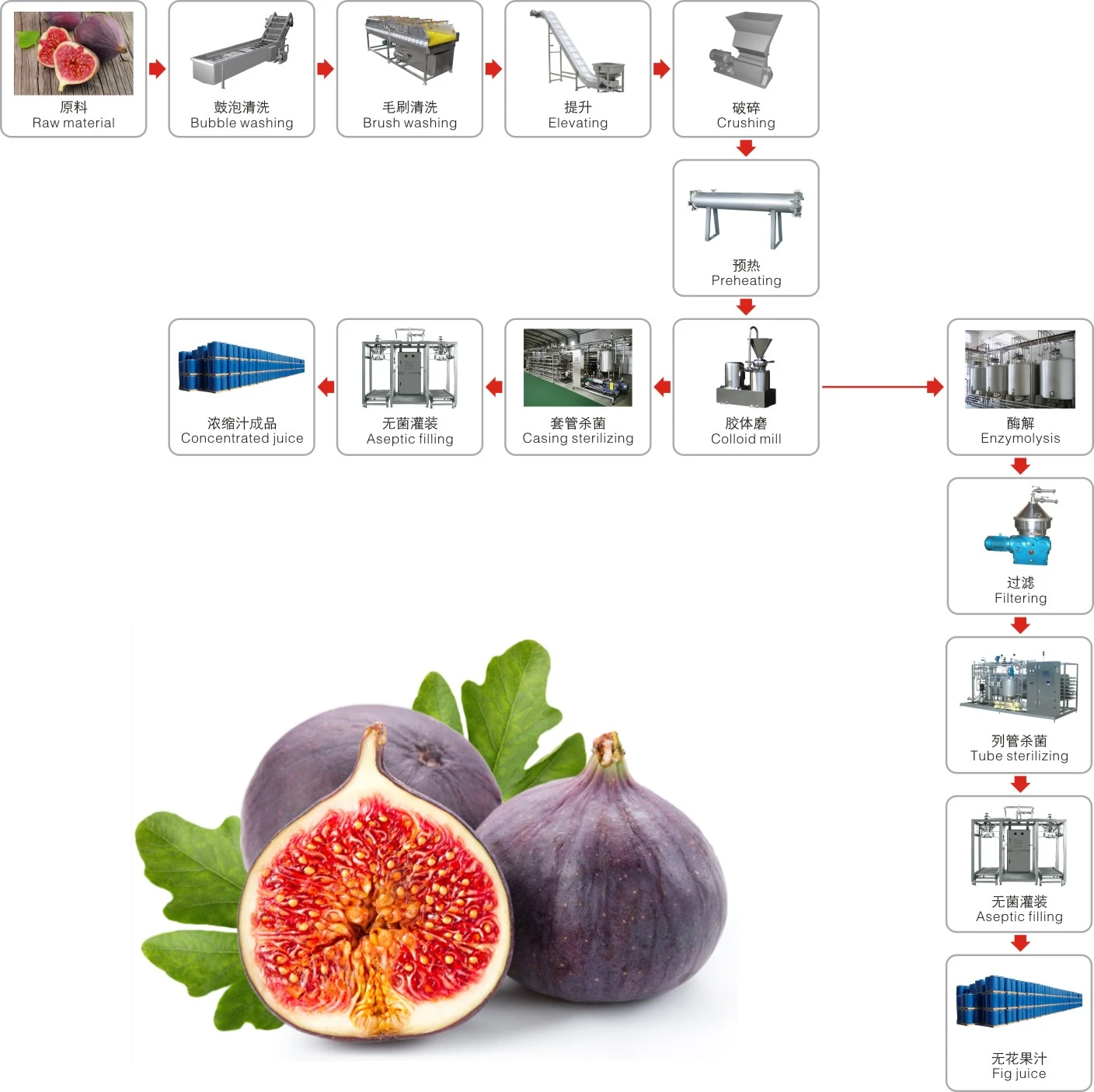

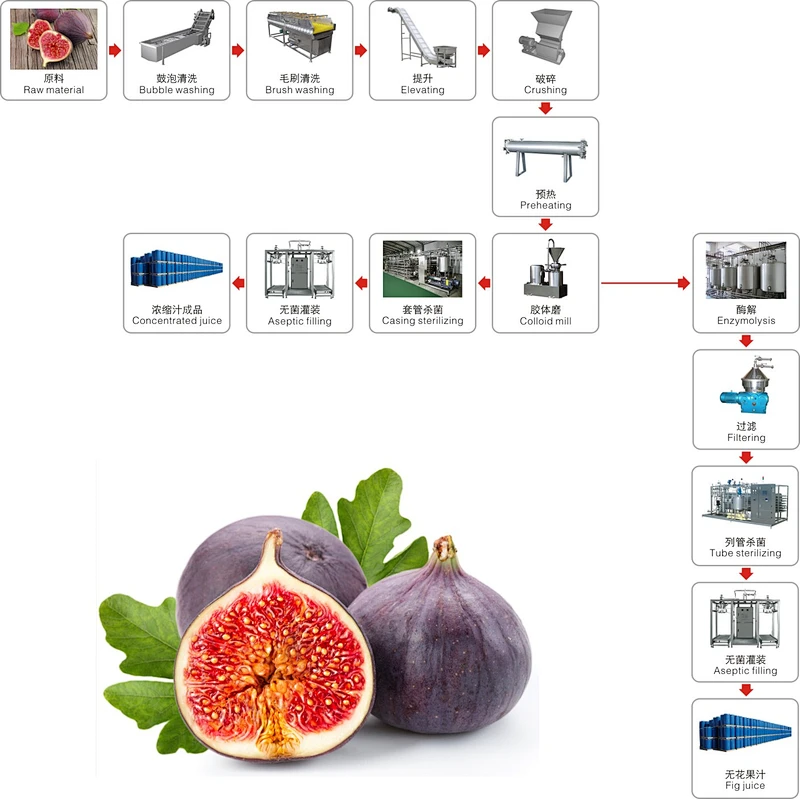

1.Raw material--Bubbie washing--Brush washing--Elevating--Crushing--Preheating--Colloid mill--Casing sterilizing--Aseptic filling--Concentrated juiceBubbie washing--Brush washing--Elevating--Crushing--Preheating--Colloid mill--Casing sterilizing--Aseptic filling--Concentrated juice.
2.Raw material--Bubbie washing--Brush washing--Elevating--Crushing--Preheating--Colloid mill--Enzymolysis--Filtering--Tube sterilizing--Aseptic filling--Fig juiceEnzymolysis--Filtering--Tube sterilizing--Aseptic filling--Fig juice.
