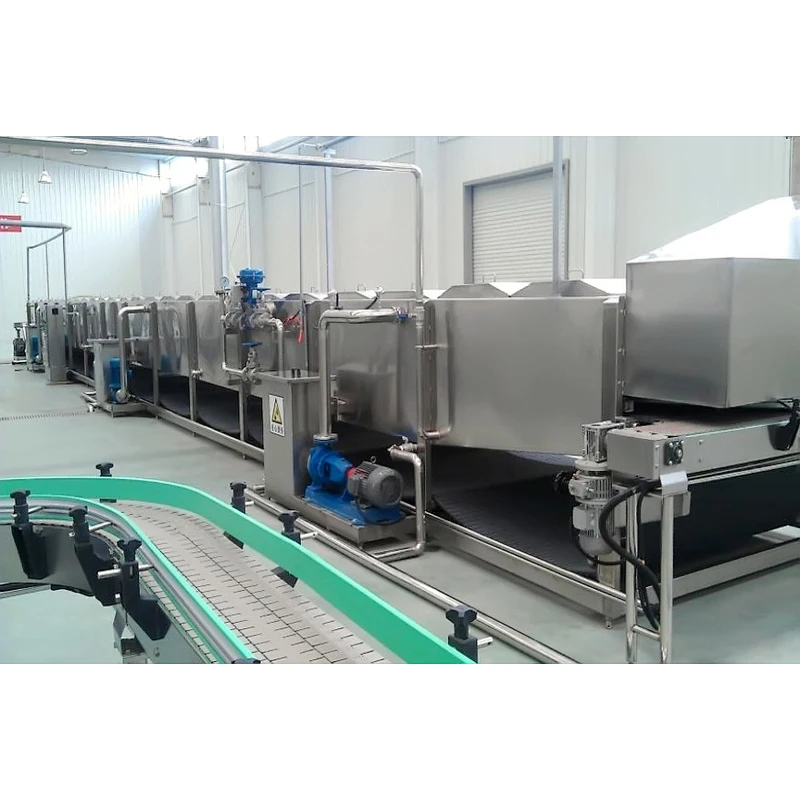

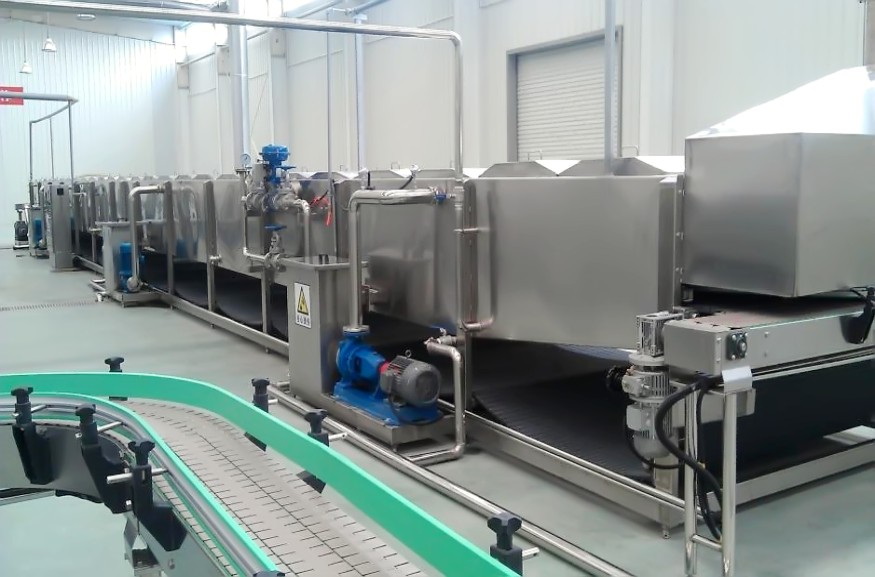

Continuous spray sterilization machine
Continuous spray sterilization machine

Continuous spray sterilization machine

Model NO.
TK-PLS
Quantity:
Product performance characteristics
◆It is widely used in the sterilization and cooling of various bottled, canned juice drinks, glass bottled seasonings and other products.
◆The continuous spray sterilizer is designed on the basis of absorbing and digesting foreign prototypes, and can be designed according to the sterilization conditions and production requirements put forward by users.
◆It adopts circulating warm water preheating, circulating hot water sterilization, circulating warm water pre-cooling, and then cooling water spray cooling, four-stage treatment;
◆It has the advantages of automatic control of sterilization temperature and stepless adjustment of sterilization time.

Main specifications and technical parameters
ModelTK-PLS-1000TK-PLS-2000TK-PLS-3000TK-PLS-5000
Maximum  pasteurization temperature(℃)96969696
Pasteurization  conveyor widthmm1500150015001500
Conveyor speedmm/min110-553110-553110-553110-553
Steam pressure(MPa)0.40.40.40.4
Length ofpasteurization sectionmm9000120001500018000
Length ofpre-cooling sectionmm1200160018002200
Length ofcooling sectionmm3000500060008000
Hot water recycle capacity(m³)21253550
Powerkw9.610.613.616.5
Dimension(L*W*H)(MM)9980*2250*173517880*2250*173523800*2250*173534880*2250*1735
