Description of Tomato Paste Processing Line

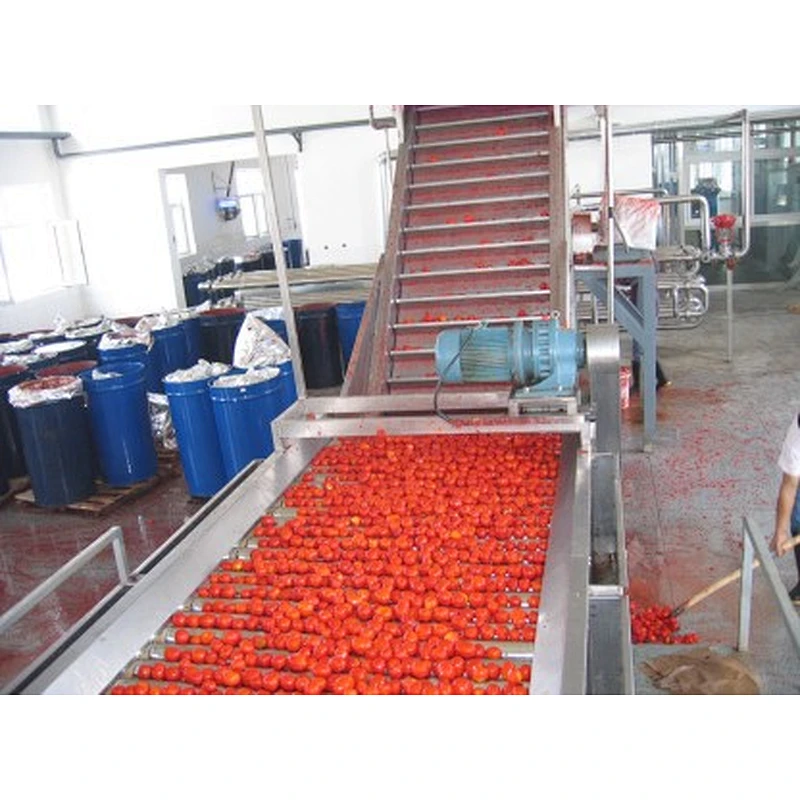

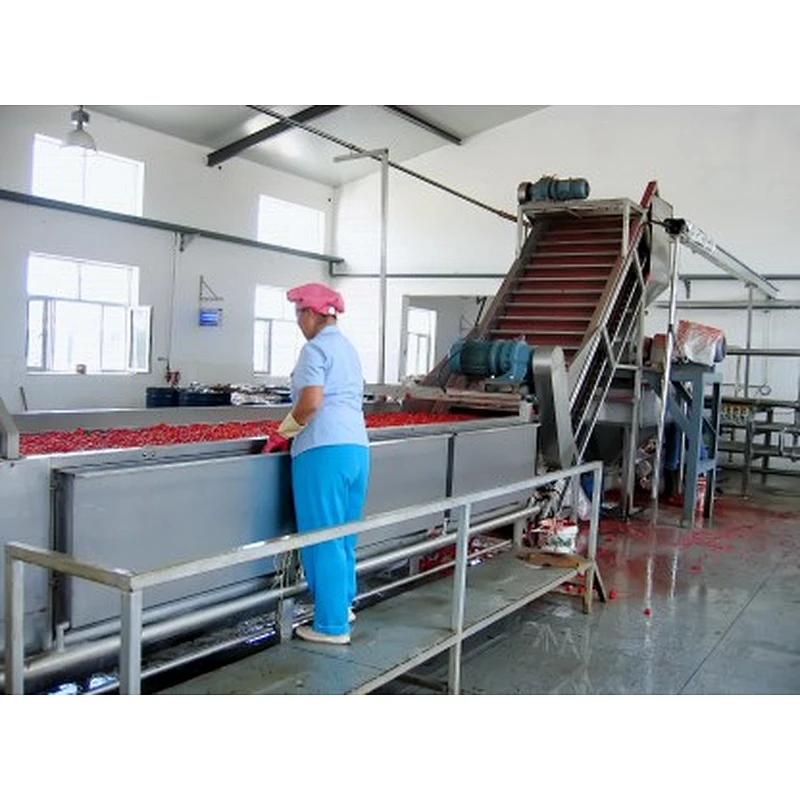

1. Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving, pre-washing and sorting section,crushing and pulping section, concentrating section, pasteurizing or sterilizing section, aseptic filling section, auxiliary energy section.2. Production capacity includes 40 tons, 60 tons, 100tons, 150 tons, 300 tons, 400 tons, 500 tons, 600 tons, 800 tons, 1000 tons, 1200 tons and 1500 tons of fresh tomatoes per day.
3. The tomato paste concentration rate is 28%, 30%, 32%, 36% ,38%.

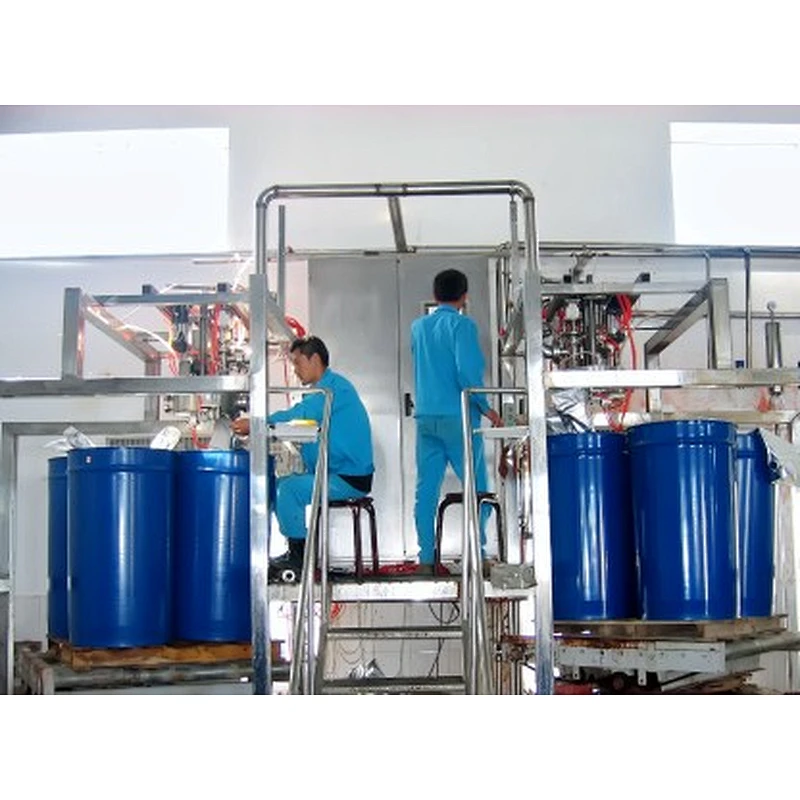

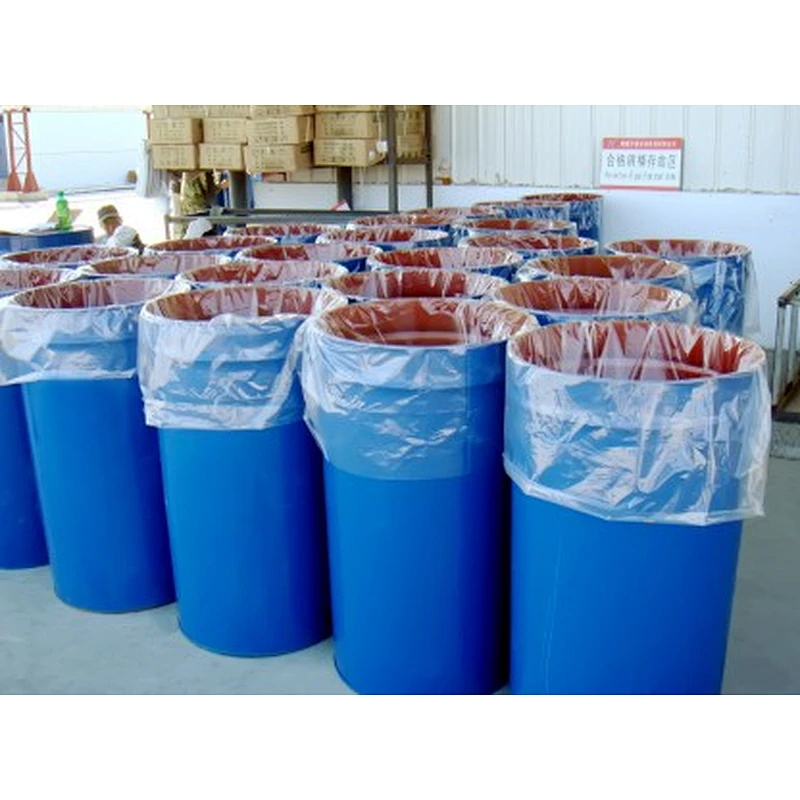

4. Tomato paste can be filled into aseptic bag in drum or can, also can be further processed to ketchup, sauces, juices in tin can/bottle/pouch, etc.
Features of Tomato Paste Processing Line
* Advanced technology, energy & water saving.* SUS304/316L material, high qualified component of international brand.
* Semi-automatic and fully automatic system for your choice.
* Customized turn-key solution including installation, commissioning at your side.
* The finished product quality is excellent, beautiful color and tasty.
* High productivity, flexible production, can be customized according to customer demand.
* Complete supervision system, equipped with control room to monitor each processing stage.
* Daily output can be clearly record.
Product Specification
| Raw material processing capacity | 60 | 150 | 750 | 1000 | 1250 | 1500 | 2000 |

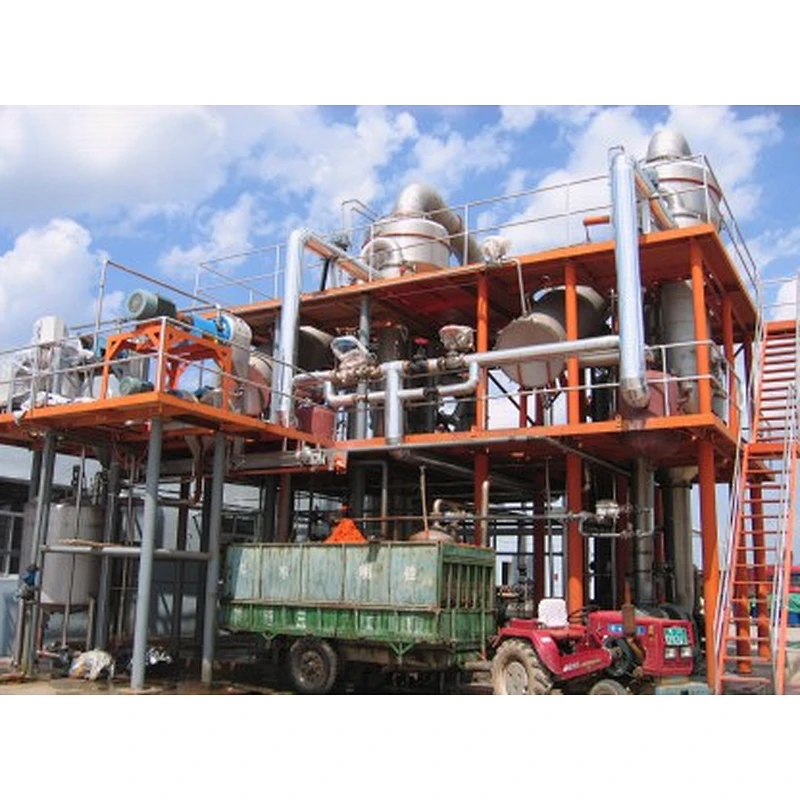

| Evaporation Form | Double vacuum | Double vacuum | Triple vacuum | Triple vacuum | Triple vacuum | Triple vacuum | Triple vacuum |
| Water Consumption | 7.1 | 13.1 | 44.3 | 65.7 | 65.9 | 65.9 | 79.08 |
| Power (kw) | 83.8 | 151.5 | 955.4 | 1291.6 | 1411.1 | 1558.1 | 1869.7 |
| Steam Consumption (t/h) | 1.665 | 3.87 | 15.01 | 20.2 | 24.62 | 29.15 | 34.98 |
| Compressed Air Consumption (t/h) | 66.2 | 66.2 | 72.1 | 72.2 | 72.2 | 72.2 | 86.84 |
| Cooling Water Consumption (t/h) | 125 | 317 | 825 | 1075 | 1410 | 1630 | 1956 |

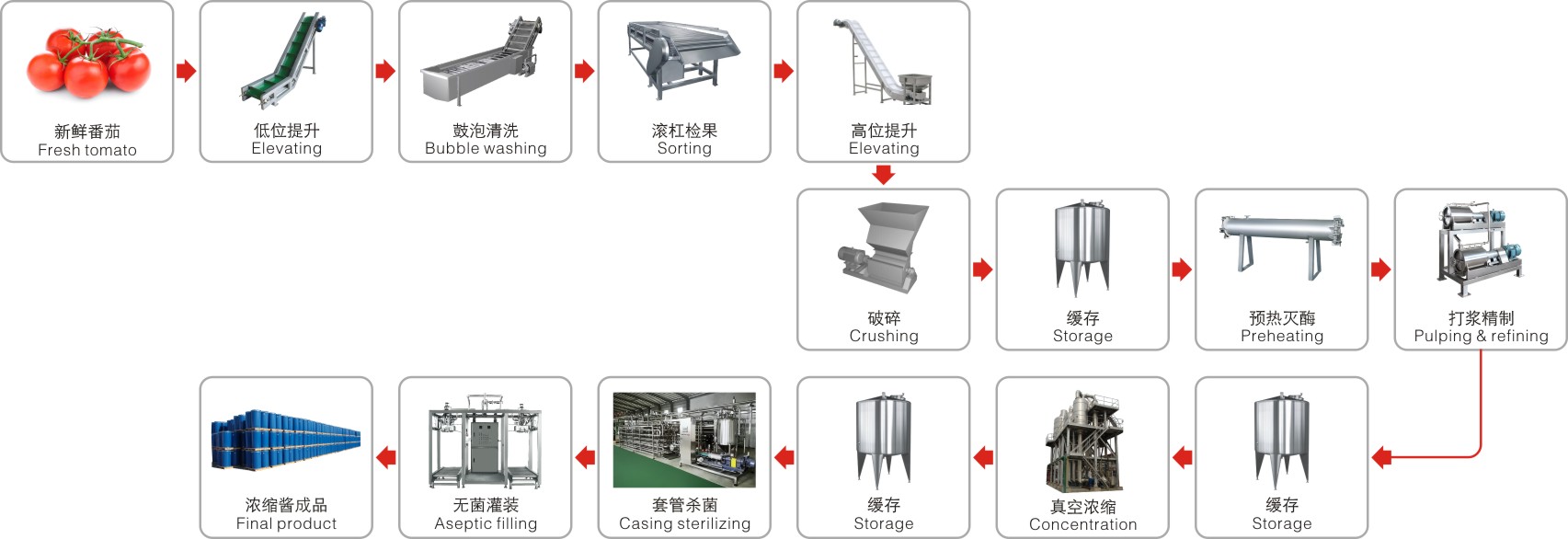

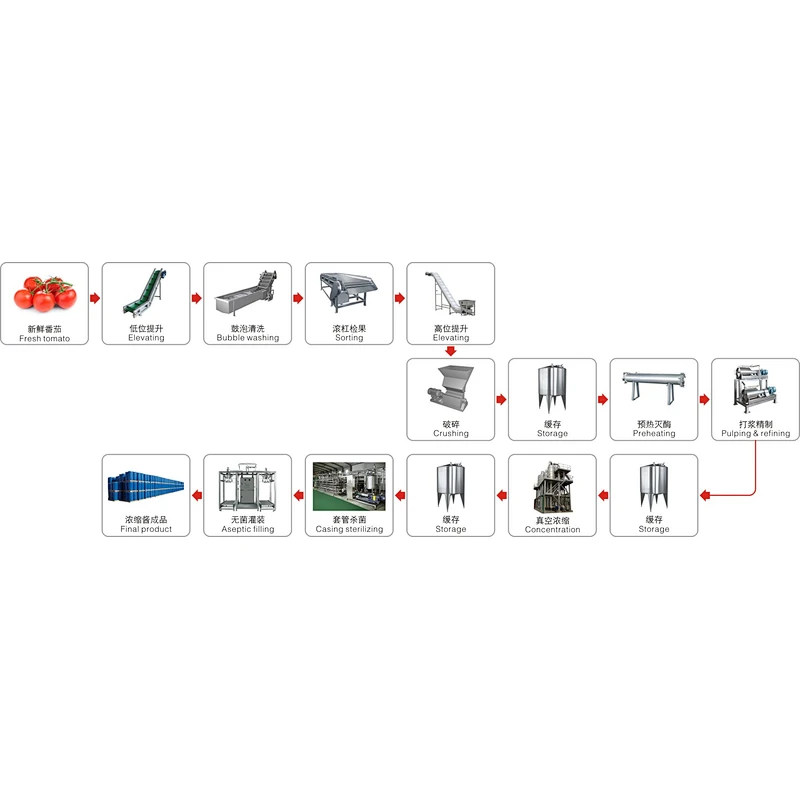

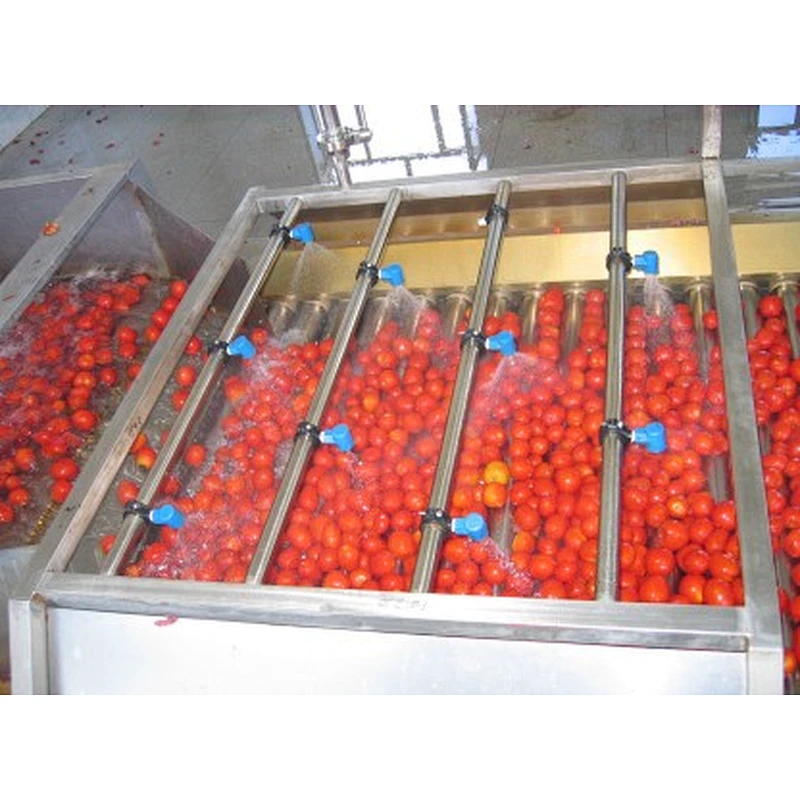

Fresh tomato--Elevating--Bubble washing--Sorting--Elevating--Crushing--Storage--Preheating--Pulping & refining--Storage--Concentration--Storage--Casing sterilizing--Aseptic filling--Final product
