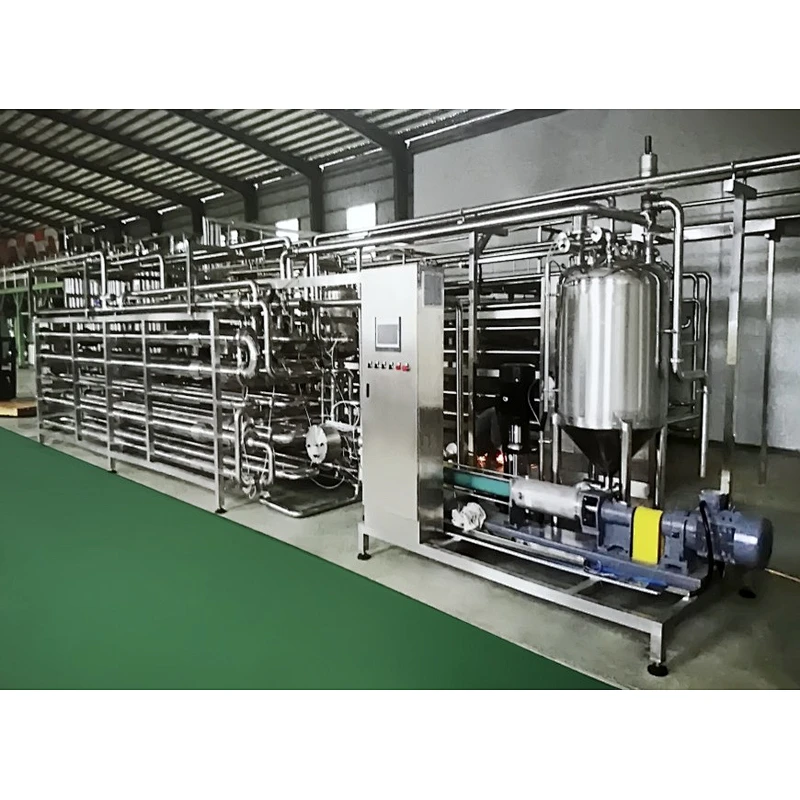

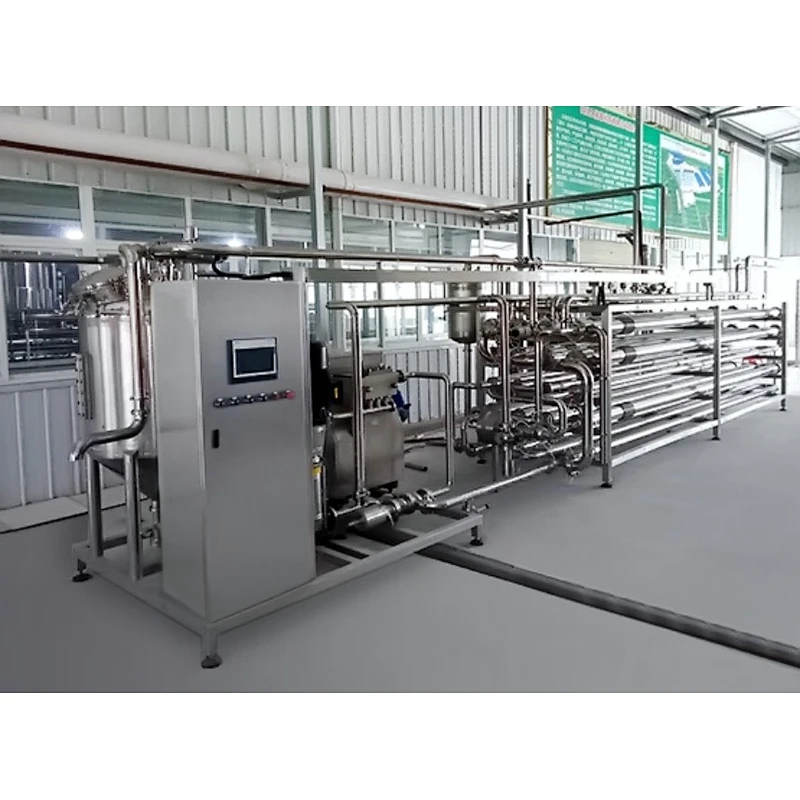

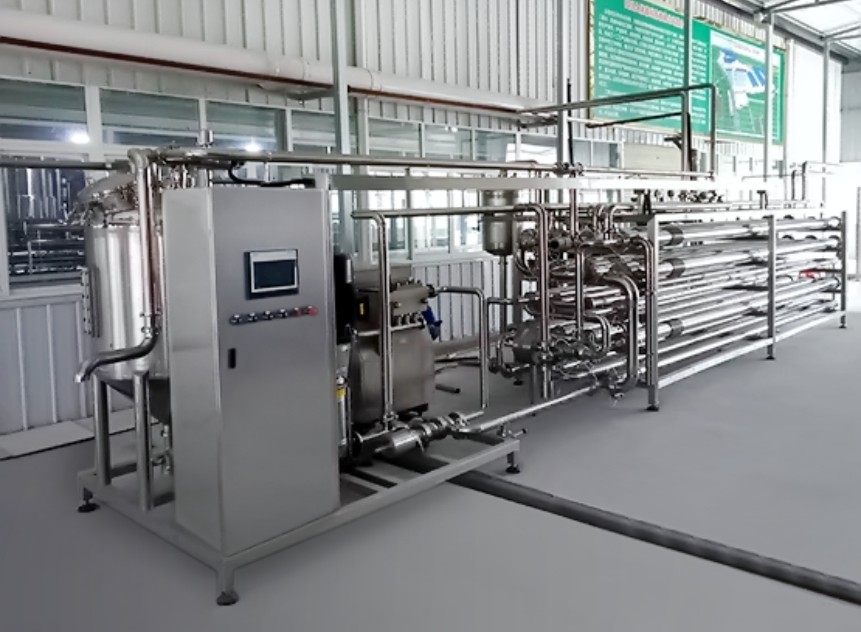

Casing sterilizer

Model NO.: TK-TG

Quantity:

Product Description

Product performance characteristics
◆It adopts special four-layer casing structure, which is specially used for sterilization treatment of jam, concentrated juice, granular materials, syrup and other materials with high viscosity and poor fluidity;
◆The whole machine is made of high quality 304 or 316 stainless steel, which meets the requirements of food hygiene;
◆The whole sterilization process is fully automatic control, the operation is simple and convenient, the sterilization parameters are set, the one-button operation is completed, the sterilization process is automatically completed, and no human intervention is required;
◆Self-contained CIP/SIP system, the pipeline is sterilized at a high temperature of 125 ° C before production.
◆The material pipe is flanged, and the joints and joints of the sterilizer pipe are sterilely protected to ensure the quality of the product;
◆Self-contained heat recovery system, saving 30% energy compared to the same type of equipment;
◆The equipment is self-contained with pipe shell to prevent scaling of the heat exchange tube and prevent cracking of the sterilizer pipe.
◆The inner wall of the material pipe is polished by advanced technology and automatically welded, and the pipe design is completely cleaned automatically;
◆The material pipeline of this equipment adopts flange connection in the temperature-maintaining and cooling section, with steam shielding device to ensure the safety and sterility of the materials.
◆The system accessories are all made of high performance and high reliability products. Steam, hot water, materials, etc. all have pressure protection measures and alarm systems;
◆The main components such as material pumps, heat pumps, various valves, electrical components and actuators of the control system are all world-renowned brands.

Main specifications and technical parameters

Model	TK-TG-0.5	TK-TG-1	TK-TG-3	TK-TG-5	TK-TG-10
Capacity	500L/H	1000L/H	3000L/H	5000L/H	10000L/H
Sterilizing time	2-120S or customized
Sterilization temperature	95-138℃	95-138℃	95-138℃	95-138℃	95-138℃
Inlet temperature	25-45℃	25-45℃	25-45℃	25-45℃	25-45℃
Outlet temperature	25-45℃	25-45℃	25-45℃	25-45℃	25-45℃
Compressed air pressure	≥0.7MPa	≥0.7MPa	≥0.7MPa	≥0.7MPa	≥0.7MPa
Compressed air consumption	10m³/h	10m³/h	10m³/h	10m³/h	10m³/h
Steam pressure	≥0.7MPa	≥0.7MPa	≥0.7MPa	≥0.7MPa	≥0.7MPa
Steam consumption	~100KG/H	~200KG/H	~600KG/H	~1000KG/H	~2000KG/H
Power	10KW	15KW	28KW	45KW	75KW
Dimension(LWH)(MM)	580017001700	880021001800	880022501900	950025002000	980028002300
