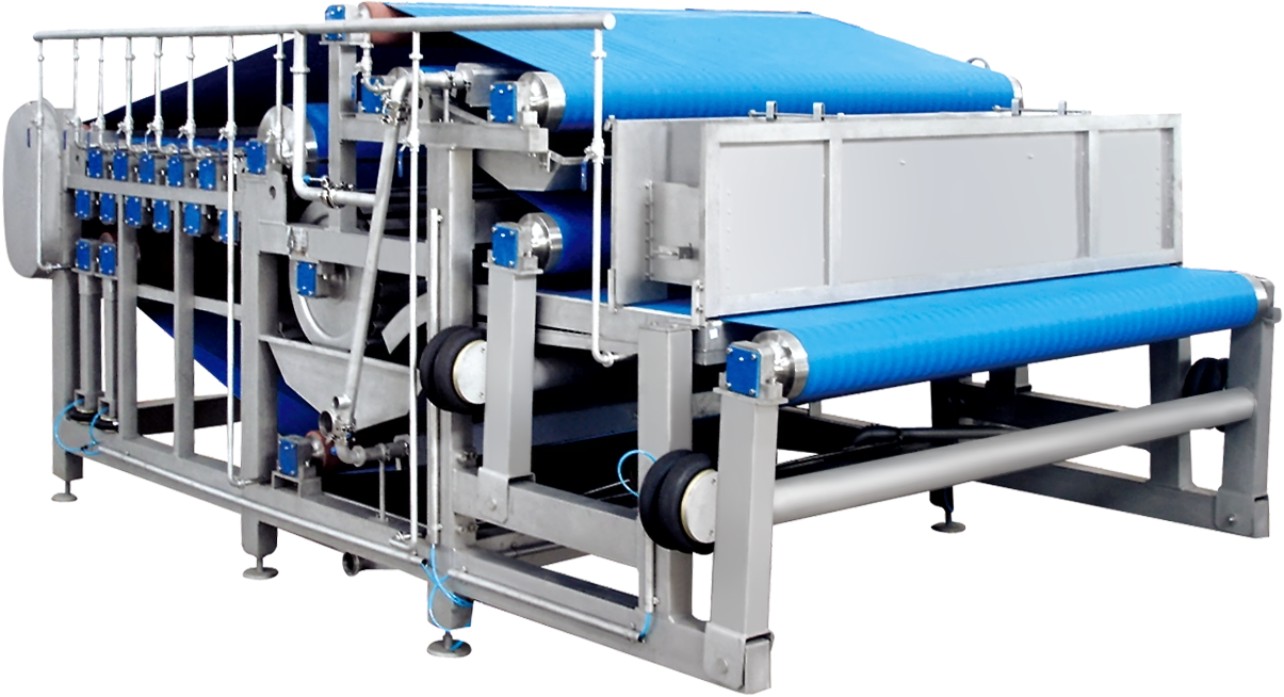

Belt juicer
Belt juicer

Belt juicer

Model NO.
TK-DZ
Quantity:
Product performance characteristics
◆This equipment is suitable for fruit and vegetable juices such as pear, apple, thorn pear, orange, asparagus, radish, ginger, etc. It can also be used for dehydration of mustard and pickles.
◆It adopts multi-stage folding roller pressurization and multi-stage pneumatic roller pressurization, and the pressing force is large, and the juice yield can be up to 75% or more.
◆Made of all stainless steel and food grade materials, in line with food hygiene standards;
◆Filter belts, air bags, bearings and other key devices are well-known brands at home and abroad, stable and reliable;
◆The filter belt running speed can be adjusted by frequency conversion, and the upper and lower filter belts can be interchanged;
◆It is equipped with automatic correcting device and filter belt limit switch, which guarantees stable operation of the equipment;
◆The washed water is filtered and recycled to save water;
◆Fully automatic control, easy to operate and easy to maintain.

Main specifications and technical parameters
ModelTK-DZ-600TK-DZ-800TK-DZ-1200TK-DZ-1750TK-DZ-2500
Capacity（t/h）1-1.51.5-34-68-1218-22
Bandwidth（mm）8001000130018502700
Length（mm）550065007500850010000
Juicerate in apple juice≥75%≥75%≥75%≥75%≥75%
Main motor power(kw)2.235.57.511
Clothe motor power(kw)0.550.550.550.750.75
Number of press rolls(pcs)1820202024
Working pressure(MPa)≤0.4≤0.4≤0.4≤0.4≤0.4
