Description of Berry Fruit Processing Line

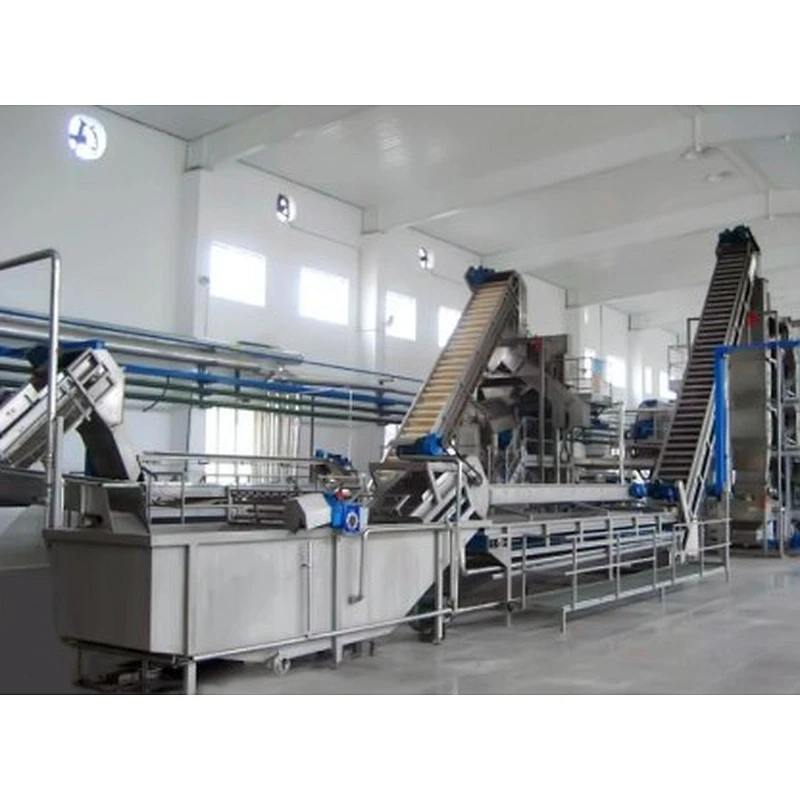

1. Berry fruit usually be frozen to storage, fresh and frozen berry fruit can be processed to fruit pulp, puree, NFC juice, HPP juice, clear concentrate juice, paste, jam,etc.2. The berry fruit processing composed of washing and sorting system, crushing and pulping system, standardization system, enzymatic hydrolysis and filtration system, evaporating system, pasteurizing/ sterilizing system, aseptic filling system, auxiliary energy system.
3. Berry processing line capacity is from 10 tons/day to 480 tons/day.
4. Berry fruit pulp yield: about 90% (10% for fruit peels and seeds for the waste).
5. Raw material solid content: 8~14% Brix. Final concentrated juice concentration: 65~72% Brix. Concentrated paste 28~30% Brix.
Features of Berry Fruit Processing Line
* Advanced technology, energy & water saving.* SUS304/316L material, high qualified component of international brand.
* Semi-automatic and fully automatic system for your choice.
* Customized turn-key solution including installation, commissioning at your side.
* The finished product quality is excellent, beautiful color and tasty.
* High productivity, flexible production, can be customized according to customer demand.
* Complete supervision system, equipped with control room to monitor each processing stage.
* Daily output can be clearly record.
Product Specification
| Raw material | Blueberries, Blackberries, Raspberries, Strawberries |
| End product | Pulp, Puree, NFC juice, Concentrate juice, Paste, Jam |
| Processing capacity | From 10 tons/day to 1500 tons/day |
| Efficient input | About 95% raw fruit |
| Fruit consistence | 8~14% Brix |
| Product consistence | 28-30% Brix, 60~65% Brix |
| End package | Aseptic bag/ Metal can/ Glass bottle/ PET bottle |
| Designed capacity | According to clients’ requirements |

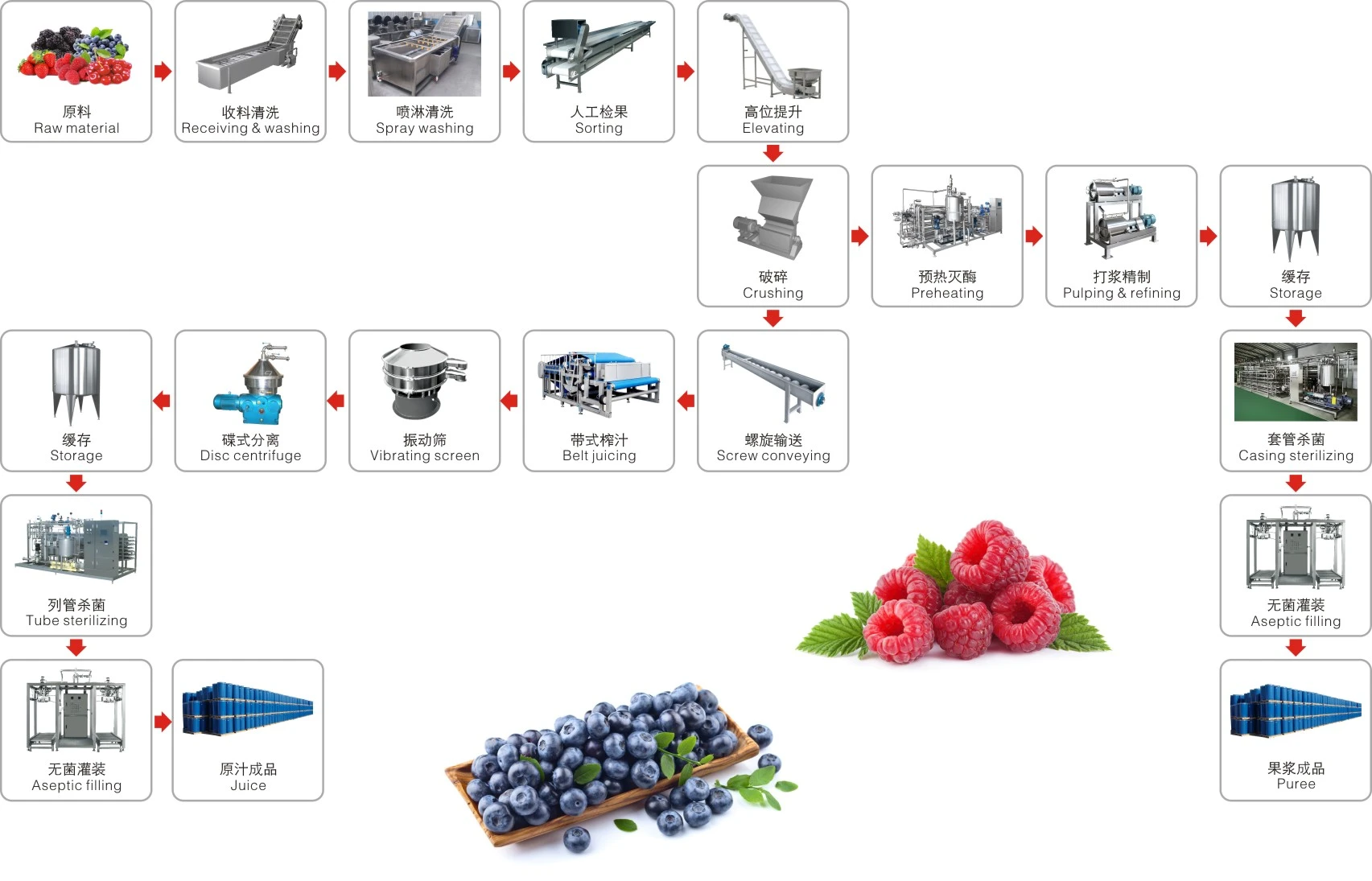

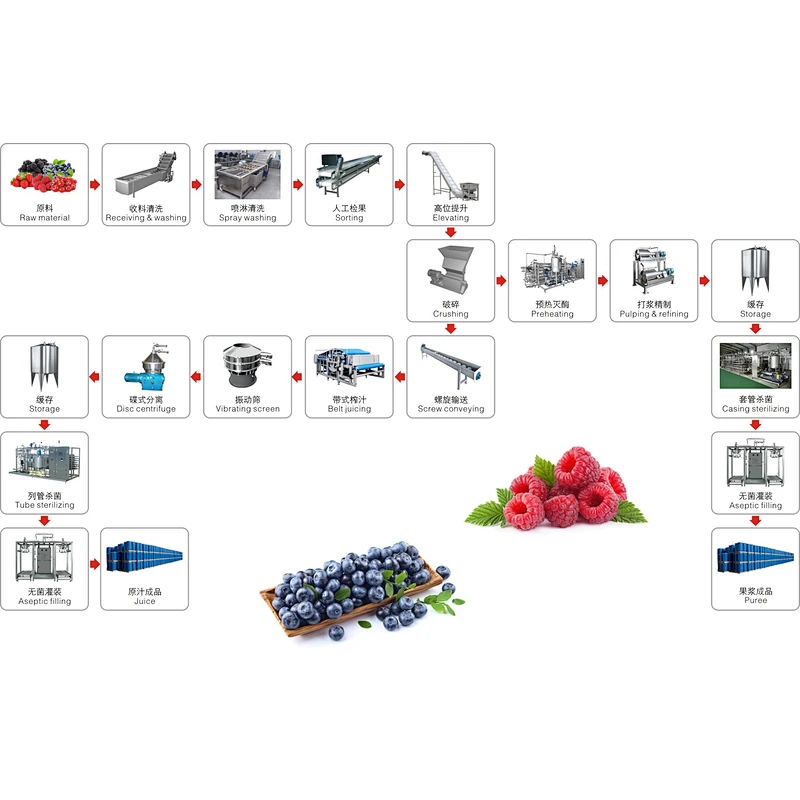

Product Flowchart

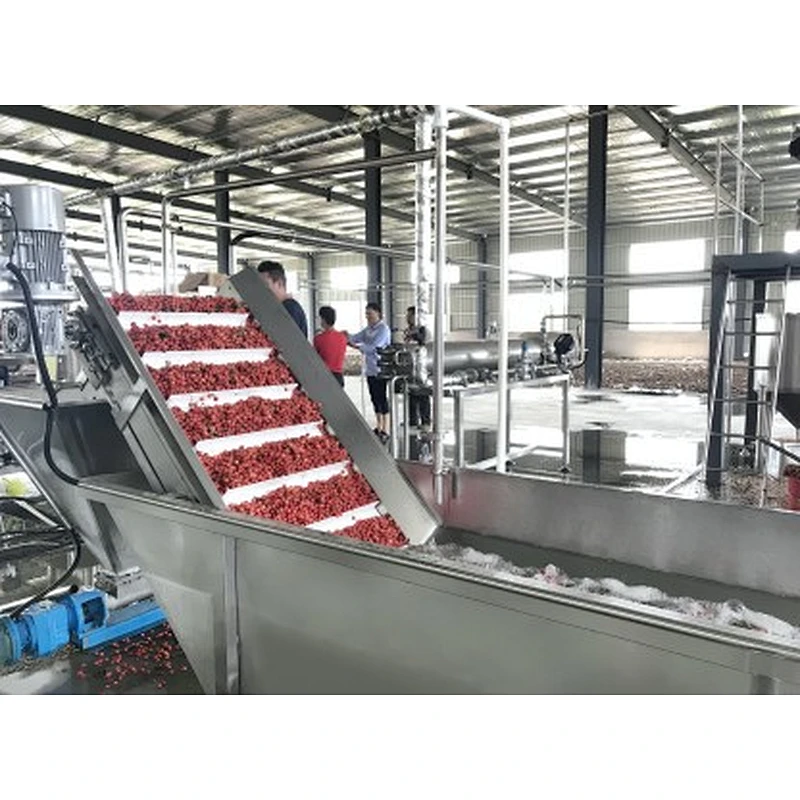

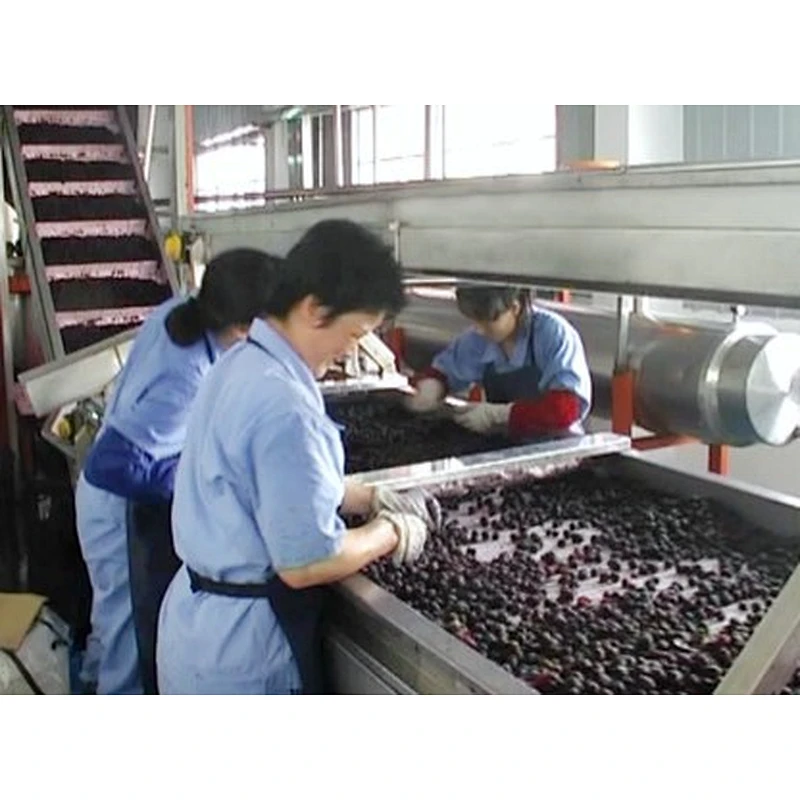

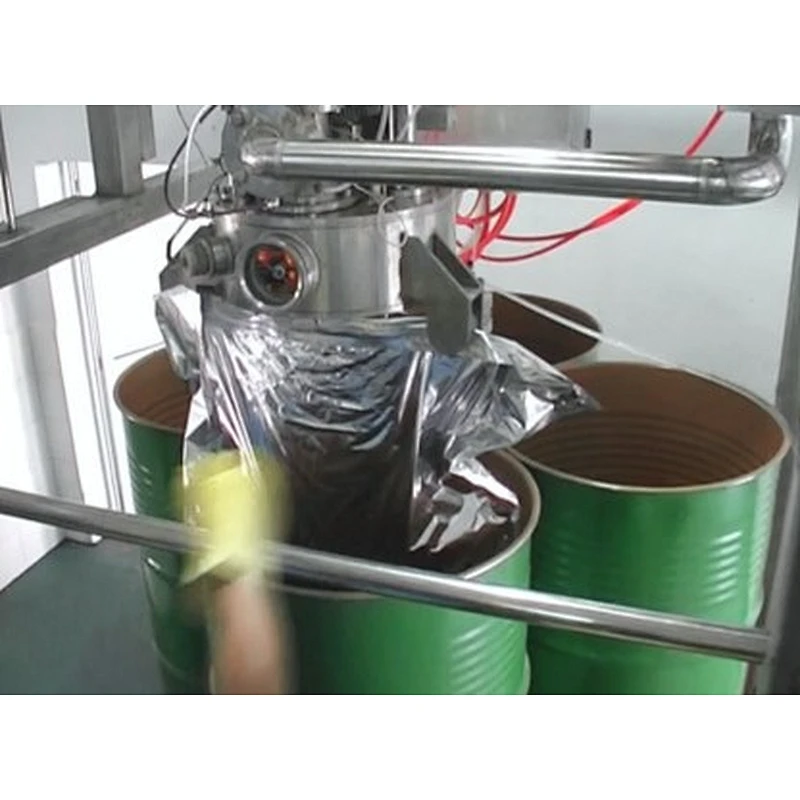

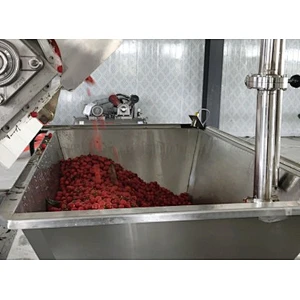

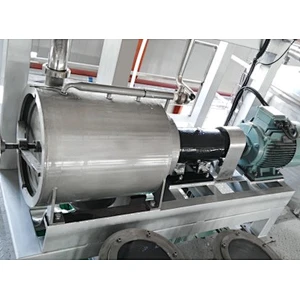

1.Raw material--Receiving&washing--Spray washing--Sorting--Elevating--Crushing--Preheating--Pulping&refining--Storage--Casing sterilizing--Aseptic filling--Puree.

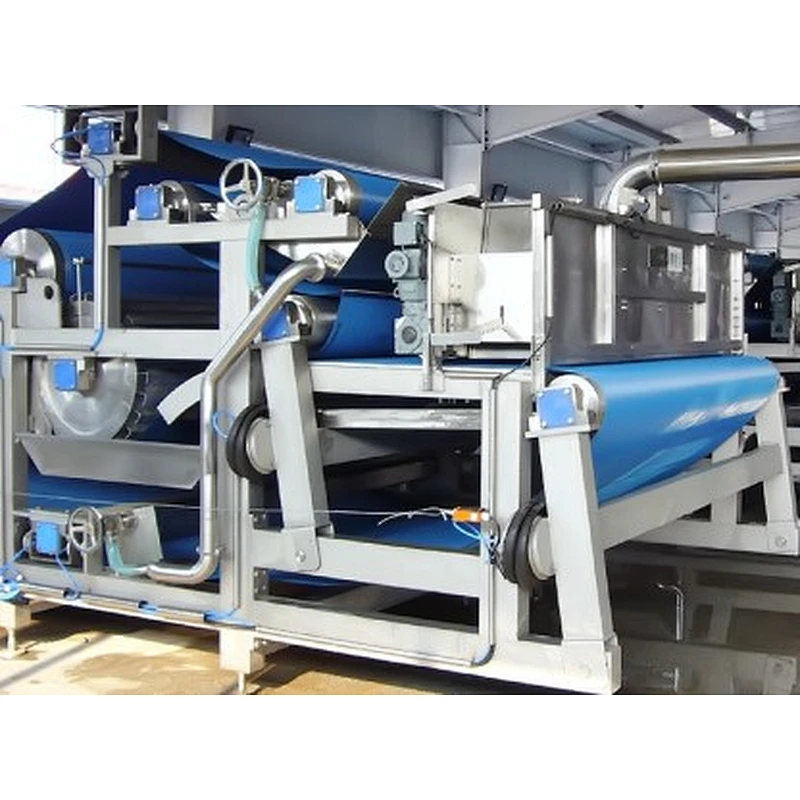

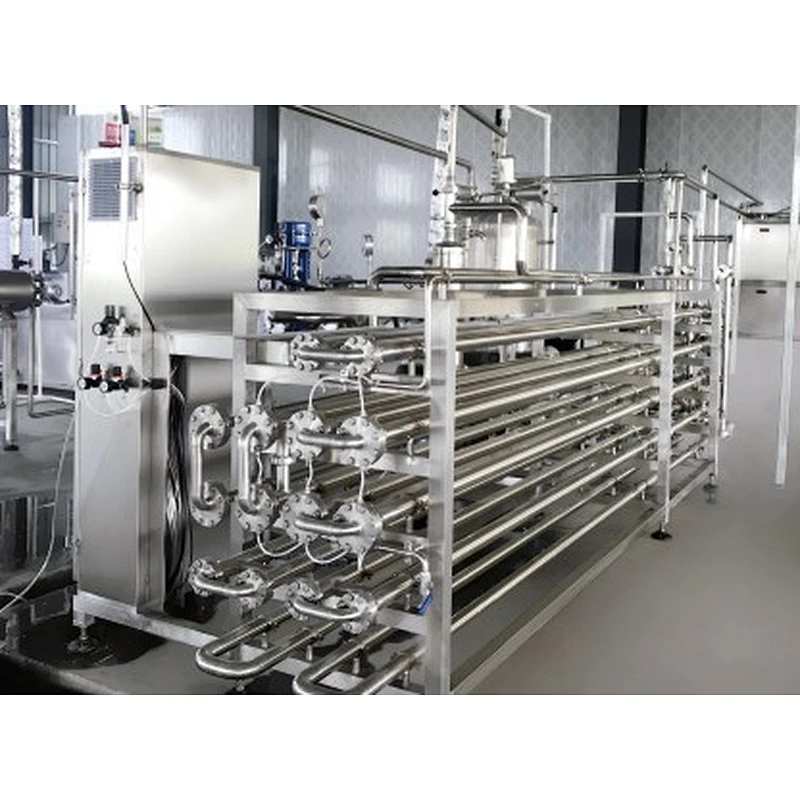

2.Raw material--Receiving&washing--Spray washing--Sorting--Elevating--Crushing--Screw conveying--Belt juicing--Vibrating screen--Disc centrifuge--Storage--Tube sterilizing--Aseptic filling--Juice.
